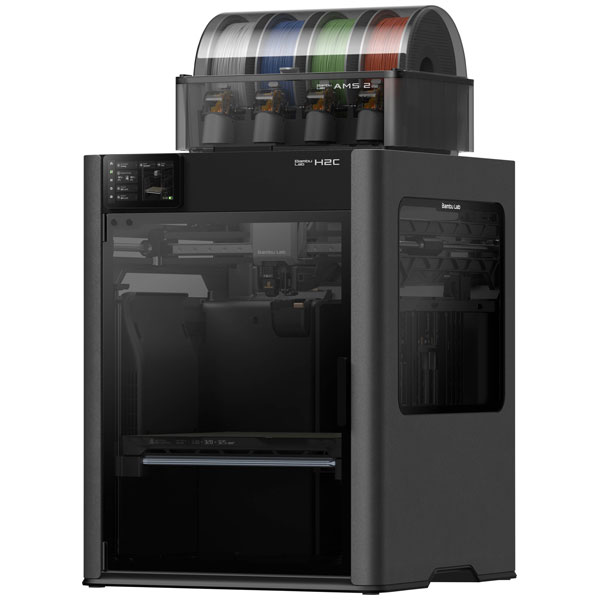

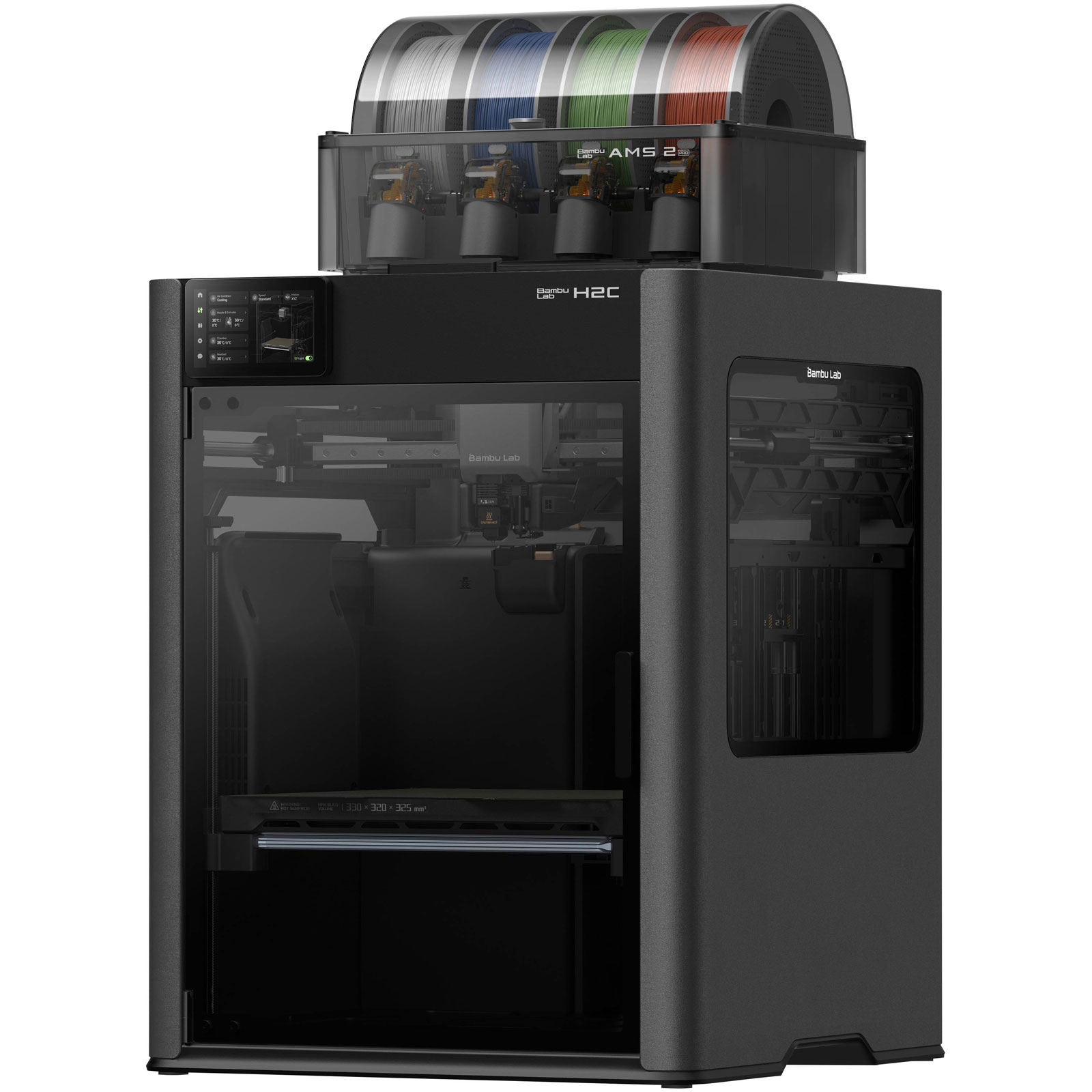

Bamboo Lab H2C - Precise multi-material 3D printing on production level
The Bambu Lab H2C takes professional FDM printing to a new level: Its fully automated Vortek hot-end swap system, the actively heated pressure chamber and an extensive sensor architecture enable precise, reproducible multi-material and multi-color printing with industrial efficiency. Developed for prototyping, modeling, engineering and additive small series production, the H2C combines high-resolution print quality with extraordinary reliability and production-oriented performance.
Next-Level multi-material print
The Bamboo Lab H2C enables real multi-material and multi-color 3D printing with up to seven materials in a single printing process. Colours and material properties are combined directly in the component - without complex reworking, without manual filament change. The system reduces purge processes to a minimum and significantly reduces filament consumption. Ideal for complex technical components, function-integrated prototypes and high-quality design models in 3D printing, 3D scanning and 3D consumables.
Vortek - The efficient hot-end swapping system
The Vortek system is an inductively operated, fully contact-free hot-end swap system. Instead of flushing material through purge processes, the entire hotend is changed in the H2C. This significantly reduces material consumption, color transfer and conversion times – Ideal for precise multi-material and multi-color 3D printing.
8-second induction heating system for extremely quick and reproducible material change.
Can use up to six Hotends at the same time - without any noticeable loss of construction space.
Persistent filament profiles are stored directly in the hotend, so that each hotend carries the material data independently.
Contact-free data transmission without sensitive metal contacts – no oxidation, maximum reliability.
Minimal Purge waste due to complete material separation via hot-end change instead of flushing.
This architecture enables clear color boundaries, clean material changes and stable processes - especially for engineering filaments, multi-color models and function-integrated components where the highest precision is required.
Designed for demanding materials
With a maximum nozzle temperature of 350°C and an actively heated chamber up to 65°C, the H2C is designed for technical filaments.
Supported materials include:
Standard filament types PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET
High-performance and engineering materials: PPS, carbon and glass fiber reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA AND PPS
The actively controlled chamber reduces distortion, improves layer adhesion and enables the reliable pressure of complex, high-capacity components.
Controlled environment and effective air cleaning
For use in office, laboratory or production environments the H2C is equipped with a multi-stage filter system:
G3 pre-filter for coarse particles
H12 HEPA filter for fine particles
Activated carbon filters made of coconut shell for the reduction of odors and VOC emissions
Together with the closed pressure chamber made of UL94 V-0 materials, this creates a secure, controlled environment for professional 3D printing with demanding filaments.
AI-supported monitoring and error detection
The Bambu Lab H2C continuously monitors the printing process and responds early to irregularities. This reduces misprinting and saves time as well as material.
Nozzel camera with Makro optics for precise extrusion monitoring
Real-time detection of spaghetti, clumping and air printing
Automatic pre-flight check of hot bed and slicer settings before each print
Even without deep process knowledge stable, reproducible results can be achieved in daily use.
Flexible network and operating modes
The H2C offers both comfortable cloud connectivity as well as full offline operation - Ideal for security-sensitive environments.
Control via touch-screen, desktop software and mobile APP
WLAN connection for remote monitoring and file transfer
Optional Developer Mode with MQTT interface for integration with existing systems*
Print jobs, firmware updates and media profiles can be flexibly adapted to your infrastructure and security requirements.
For whom is the Bambu Lab H2C the right choice?
The H2C is designed for professional users, development teams, service providers and educational institutions who need high-quality, reproducible results in 3D printing - including multi-material and multi-color applications.
Whether functional prototypes, small series made of technical plastics or complex design parts: The Bambu Lab H2C combines high printing speed, precise movement control and a powerful multi-material system to form a 3D printing solution ready for production.
This text is machine translated.
| Accepted File Types
|
3MF, STL, OBJ, FPP, BMP, PNG, JPG, JPEG |
| Filament Types |
ABS, PLA, PC, PETG, PLA-CF, PETG-CF |
| Filament Diameter |
1.75mm |
| Filtration System |
HEPA |
| Number of Extruders |
2 |
