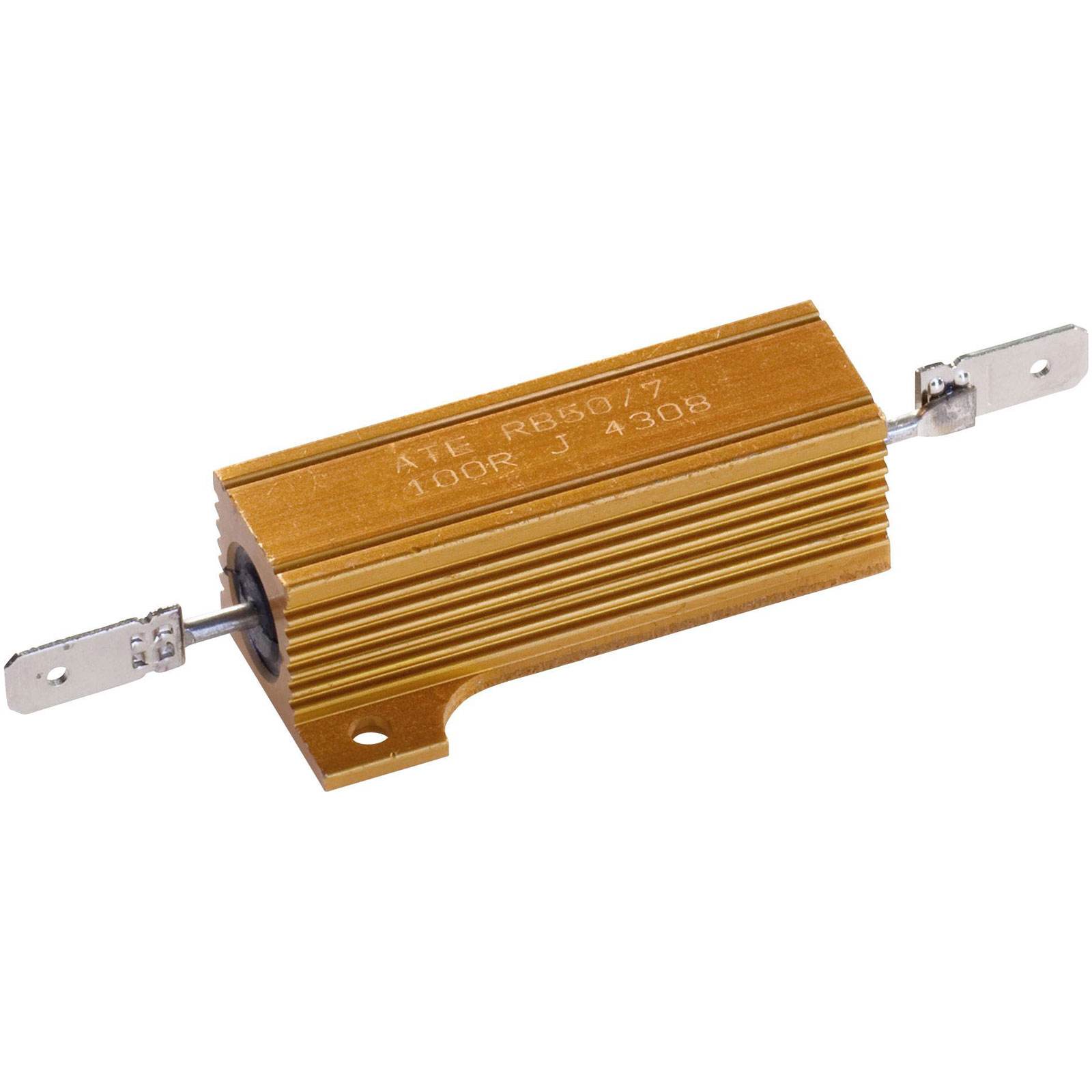

ATE Electronics RB50/7-7R5-J Power Resistor 50W 7R5 Non-Inductive Wirewound

ATE Electronics RB50/7-7R5-J is a power resistor known for its robust design and high resistance capabilities, specifically offering a resistance of 7.5 ohms. Engineered as a 50-watt wirewound resistor, it features a non-inductive design that minimises unwanted inductance in high-frequency applications, making it ideal for environments requiring stable and precise resistance values under power. Typically used in industrial and high-power applications, this resistor is well-suited for tasks such as power conversion, electrical circuit testing, and in equipment where high power dissipation is critical. Its durable construction ensures reliable performance, essential for demanding electronic systems frequently encountered in both commercial and aerospace sectors.

Type	High power resistor
Resistance	7.5Ω
Power Rating	50W
Content	1
Dimensions	(L x W x H) 91 x 29.2 x 16 mm
Height	16mm
Insulation Resistance	10000MΩ
Length	91mm
Maximum Temperature	250°C
Minimum Temperature	-55°C
Product Type	High power Resistor
Temperature Coefficient	50ppm
Threshold Voltage	1250
Tolerance ±	5%
Width	29.2mm
