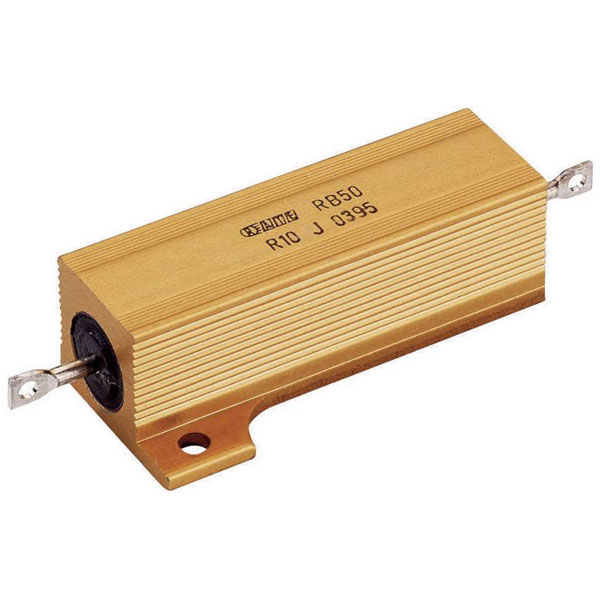

ATE Electronics RB50/5.6 High power resistor 5.6 Ω Axial lead 50 W 5% 1 pc

ATE Electronics RB50/5.6 is a high power resistor designed with a resistance value of 5.6 ohms, capable of handling up to 50 watts of power with a tolerance of 5%. This wire-wound resistor features axial leads, facilitating easy integration into various electronic circuits. With dimensions of 50x16x16 mm, the RB50/5.6 is engineered for high impedance applications where efficient heat dissipation is crucial. Typically used in industrial and automotive sectors, this resistor is suited for tasks such as voltage regulation, current limiting, and power supply circuits, offering robust performance in demanding environments. Its construction and specification make it ideal for engineers seeking reliable passive components for high power requirements.

Type	High power resistor
Resistance	5.6Ω
Power Rating	50W
Content	1
Design type	Wire
Dimensions	(L x W x H) 50 x 16 x 16 mm
Height	16mm
Length	50mm
Product Type	High power Resistor
Tolerance ±	5%
Width	16mm
