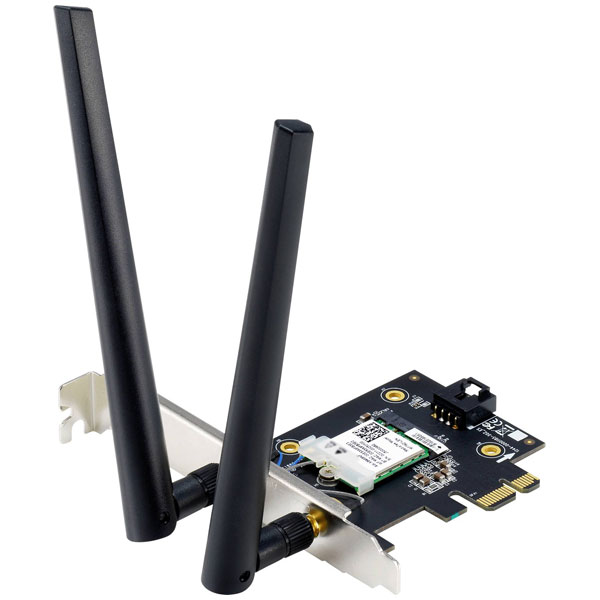

Asus 90IG09G0-MO0B00 PCE-BE6500 Wi-Fi/Bluetooth Adapter PCIe 2880 MBit/s

Asus 90IG09G0-MO0B00 is a sophisticated PCE-BE6500 Wi-Fi/Bluetooth adapter designed to enhance connectivity in high-performance computing environments. Supporting a robust wireless data transfer rate of up to 2880 MBit/s, this adapter utilises the PCIe 3.0 x1 interface to provide seamless integration with modern computer systems, ensuring high-speed wireless networking capabilities. The device offers dual functionality by combining both Wi-Fi and Bluetooth connectivity, thus facilitating versatile communication options for diverse engineering applications, such as wireless data acquisition in industrial control systems and seamless media streaming in content creation workstations. Its adherence to contemporary wireless standards ensures reliable operation in complex networking configurations.

Type	Wi-Fi/Bluetooth®-Adapter
Antenna	Yes
Antenna design	External
Bluetooth	Yes
Bluetooth Version	5.4
Component for	PC
Connectivity technology	Wireless
Depth	88.5mm
Frequency Range	2.4 - 6 GHz
Height	21.6mm
Host interface	PCI Express
Interface	WLAN / Bluetooth
Interfaces	PCIe 3.0 x1
Internal	Yes
Maximum data transfer rate	2882 Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n
Package depth	139mm
Package height	75mm
Package weight	230 g
Package width	220mm
Product colour	Black, Stainless steel
Product Type	Wi-Fi/Bluetooth®-Adapter
Quick installation guide	Yes
Security algorithms	WPA3
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Transfer Rate	2880 MBit/s
Weight	51.6 g
Width	120.5mm
Wi-Fi	Yes
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Windows operating systems supported	Windows 11
