These sensors are of the latest generation and measure, Atmospheric pressure
Temperature and humidity
Light intensity (in LUX, max 650).

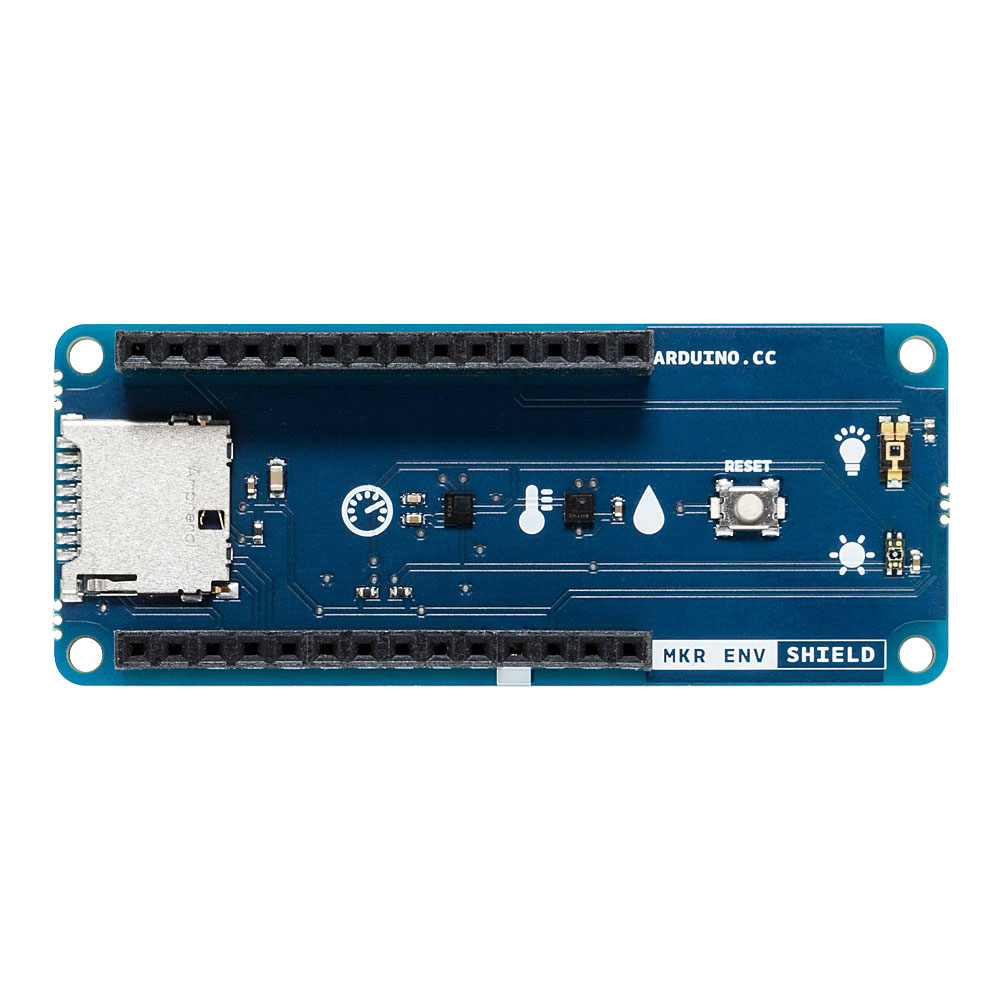

To help you build projects and store the data collected locally, this shield has a slot for a microSD card.
There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.
The sensors used in this kit are:
ST LPS22HB which measures atmospheric pressure.
ST HTS221 which measures temperature and humidity, and
VISHAY TEMT6000 which measures Lux of the ambient light.
Technical Specifications
| LPS22HB: Atmospheric pressure sensor | 260 to 1260 hPa absolute pressure range |
| Current consumption down to 3 μA |
| High overpressure capability: 20x full-scale |
| Embedded temperature compensation |
| 24-bit pressure data output |
| 16-bit temperature data output |
| ODR from 1 Hz to 75 Hz |
| SPI and I²C interfaces |
| Embedded FIFO |
| Interrupt functions: Data Ready, FIFO flags, pressure thresholds |
| Supply voltage: 1.7 to 3.6 V |
| TEMT6000: Ambient light sensor | High photo sensitivity |
| Adapted to human eye responsivity |
| Angle of half sensitivity: φ = ± 60° |
| HTS221: Humidity and temperature sensor | 0 to 100% relative humidity range |
| Supply voltage: 1.7 to 3.6 V |
| Low power consumption: 2 μA @ 1 Hz ODR |
| Selectable ODR from 1 Hz to 12.5 Hz |
| High rH sensitivity: 0.004% rH/LSB |
| Humidity accuracy: ± 3.5% rH, 20 to +80% rH |
| Temperature accuracy: ± 0.5 °C,15 to +40 °C |
| Embedded 16-bit ADC |
| 16-bit humidity and temperature output data |
| SPI and I²C interface |
| Type |
Environmental Sensor Kit |
