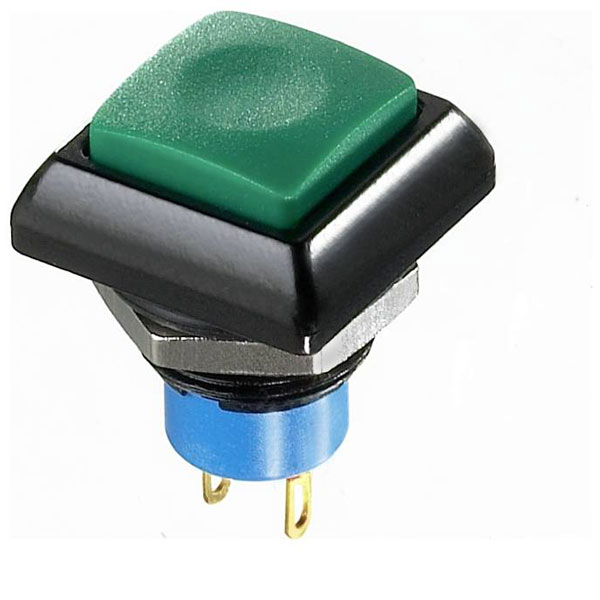

APEM IPC3SAD6 IP Series Pushbutton 28 V DC 5 A 1 x On/(Off) 12 mm x 20 mm

APEM's IPC3SAD6, part of the IP Series, is a robust 28 V DC push-button switch designed for demanding applications. This component is rated for a current capacity of 5 A and operates as a momentary switch with a configuration of 1 x On/(Off), signifying its temporary contact function. With a dimension of 12 mm x 20 mm and an Ingress Protection rating of IP69K, it is ideally suited for environments requiring a high level of protection against dust and water ingress. Such characteristics make the IPC3SAD6 suitable for use in industrial equipment, automotive systems, and other applications where reliability under harsh conditions is paramount. Its durability and performance are well-suited for situations that demand frequent actuation with uncompromising consistency.

Type	IP Series
Contact Configuration	SPST
Switch Function	On/(Off)
Current Rating	5A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Casing/button colour	Red
Connection	Solder tag
Contact Material	Silver, gold plated
Content	1
Diameter	12mm
Dimensions	(Ø x H) 12 mm x 20 mm
Durability	1000000
Functions	momentary
Height	20mm
IP Rating	IP69K
Maximum Temperature	85°C
Product Type	Pushbutton
Switch position	1 x On/(Off)
Switching current (max.)	5A
Switching Voltage	28V DC
