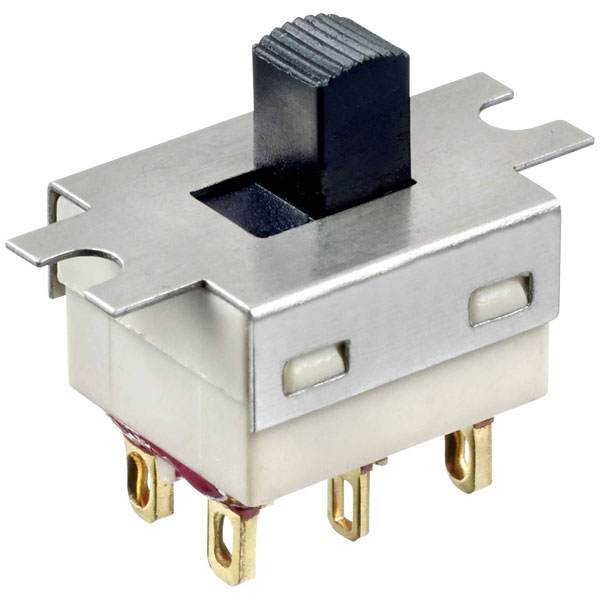

APEM GH36S000001 G Series Slide Switch 20V DC On/(On) 1pc

APEM manufactures the GH36S000001 G Series Slide Switch, designed for 20 V DC applications. This switch features a single-pole On/(On) functionality, ideal for precise control in electronic devices. It is often used in audio equipment for smooth fader adjustments.

Type	Slide switch
Contact Configuration	SPDT
Switch Function	On/(On)
Current Rating (Amps)	20 mA
Actuator Type	Raised Actuator
Connection	Solder tag
Contact Material	Brass contacts, gold plated (CD)
CS	4.7mm
Dim	(L x W x H) 19.5 x 11.4 x 5 mm
Electrical lifespan	60000
Height	5mm
Length	19.5mm
Misc Attribute	G Series
Switch position	1 x On/(On)
Switching Voltage	20V DC
Width	11.4mm
