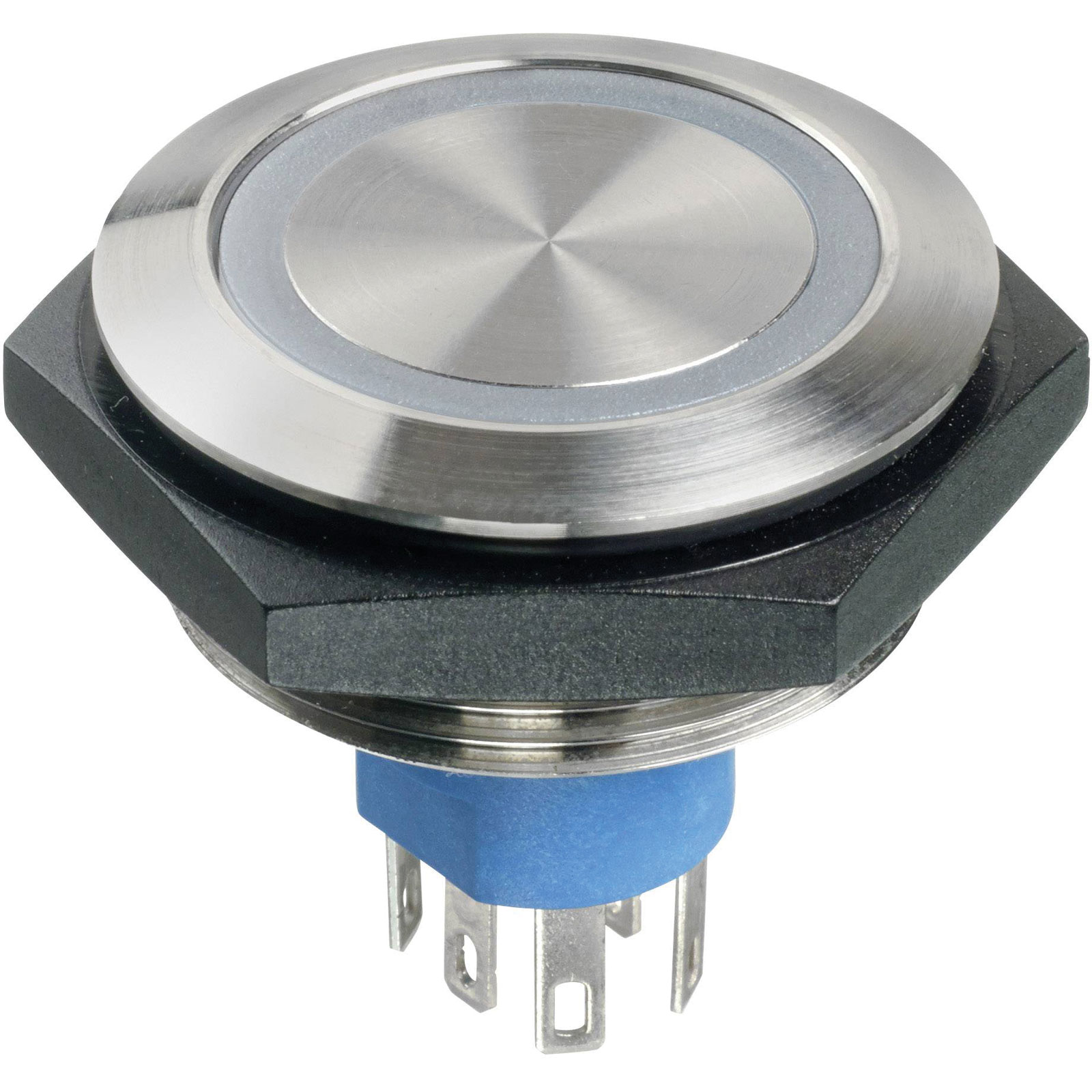

APEM AV5V022000074BK Tamper-Proof Green Pushbutton 30V DC 1A IP67

The APEM AV5V022000074BK is a tamper-proof pushbutton switch designed for reliability, with a rating of 30 V DC and 1 A. Its compact size (36 mm x 24 mm) and IP67 protection make it suitable for harsh environments. This green momentary switch is ideal for industrial control panels and security applications.

Type	Tamper-proof pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	Momentary
Current Rating	1A
Mounting	Panel
Voltage Rating	30V
Illumination	Green
Panel Cutout Dimensions	30
(Ø)	36mm
Actuating Force	5N
Bulb Type	LED (monochrome)
Colour	Green
Contact Material	Silver
Dim	(Ø x H) 36 mm x 24 mm
Factory colour	Ecru
Height	24mm
IP Rating	IP67
Lighting Type	Circular lighting
Material	Stainless steel
Maximum Temperature	+85°C
Min. temperature	-30°C
Recess Diameter	30mm
Shape	Round
Switch/button features	planar
Switching Voltage	30V DC
