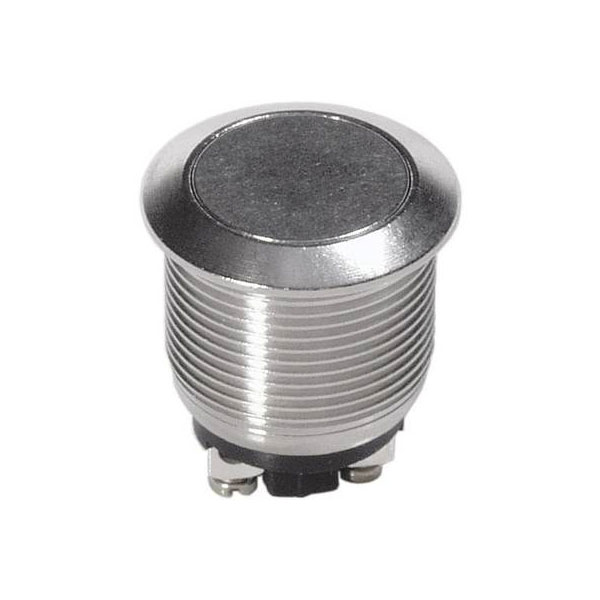

APEM AV09C703D200 Tamper-Proof Pushbutton 24V DC 0.05A Momentary

APEM
Order Code:

11-3013

Brand: APEM MPN: AV09C703D200 EAN-13: 4016138116212
Qty Unit Price (Ex VAT)
1+ £13.97
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
288 in stock, despatched in 4 working days

The APEM AV09C703D200 is a tamper-proof pushbutton switch designed to operate at 24 V DC with a current rating of 0.05 A. Notable for its momentary action, the switch is primarily used for secure control panels to prevent unauthorised access. This durable component is suitable for various industrial and commercial applications.
Type Tamper-proof pushbutton
Contact Configuration 1 x Off/(On)
Switch Function 1 maker
Current Rating 0.05A
Board thickness (max.) 13.5mm
Casing/button colour Metal
Contact Resistance (with 1 A/2 V/DC) voltage:100mΩ
Dielectric Strength
2000 Veff/50 Hz (between terminals and bushing) 500 Veff/50 Hz (Between terminals)
Electrical lifespan 1000000 cycles
Insulation Resistance 500 V 1000MΩ
Lighting type None
Material Metal
Misc Attribute 1 Vandalism-proof
Recess diameter 19mm
Switch/button features Planar
Switching Capacity 50 mA/24V DC
Switching Voltage 24V DC
Thread Size 19mm
