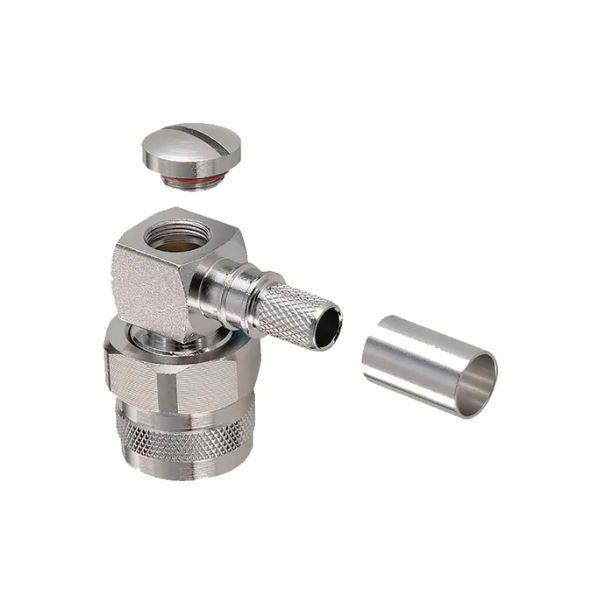

Amphenol TC-240-TM-RA-D 50 Ohm RA Plug Coaxial Connector

The Amphenol TC-240-TM-RA-D is a high-performance TNC male plug coaxial connector designed for use with LMR-240 coaxial cable. It features a right-angle, free-hanging (in-line) configuration, making it ideal for installations where space is limited or where cable routing requires a 90-degree bend. With a 50-ohm impedance and support for frequencies up to 6 GHz, this connector is well-suited for RF applications including wireless communications, antenna systems, and test equipment.

Constructed with a brass body finished in white bronze and a gold-plated brass center contact, the TC-240-TM-RA-D offers excellent conductivity and corrosion resistance. The connector uses a solder contact termination and crimp shield termination, ensuring a secure and reliable connection. Its threaded coupling mechanism provides strong mechanical retention and stable electrical performance, even in environments subject to vibration or movement.

Designed to operate in a wide temperature range from -65°C to +165°C, this connector is built for durability and long service life, with a rated mating cycle of 500 insertions. It is a dependable choice for professional-grade RF installations requiring robust performance and compact form factor.

• Compact Right-Angle Design: Ideal for tight spaces and angled cable routing
• High-Frequency Performance: Suitable for RF applications including antennas, wireless systems, and test setups
• Weatherproof TNC Interface: Offers better environmental sealing than BNC connectors
• Reliable Electrical Contact: Soldered center pin ensures low signal loss and stable performance
• Rugged Build: Withstands harsh environments and frequent mating/unmating cycles
