Amphenol TC-240-NMH-RA-D 50 Ohm RA Plug Coaxial Connector

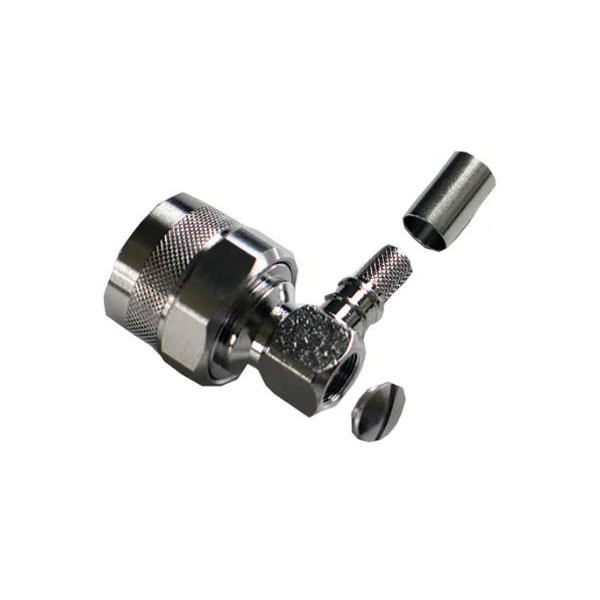

The Amphenol TC-240-NMH-RA-D is a rugged, right-angle Type N male coaxial connector designed for use with LMR-240 and equivalent 240-series coaxial cables. It features a 50-ohm impedance and supports frequencies up to 6 GHz, making it ideal for RF applications requiring low signal loss and high mechanical reliability. The connector is engineered for free-hanging (in-line) installations and is well-suited for use in wireless infrastructure, antenna systems, and test equipment.

This connector uses a solder-pin termination for the center conductor and a crimp termination for the outer shield, ensuring a secure and stable electrical connection. Its right-angle design allows for efficient cable routing in tight spaces, while the threaded coupling mechanism provides strong mechanical retention and consistent RF performance. The body is made from aluminum with a white bronze finish, and the center contact is gold-plated copper for excellent conductivity and corrosion resistance.

Designed to operate in temperatures ranging from -40°C to +85°C, the TC-240-NMH-RA-D is built to withstand harsh environmental conditions. It is fully compatible with MIL-C-39012 standard N-Type connectors and supports a wide range of LMR and TCOM cable variants, making it a versatile choice for both commercial and industrial RF systems.

• Connector Type: Type N male (plug), right-angle, free-hanging (in-line)
• Impedance: 50 Ohms
• Frequency Range: Up to 6 GHz
• Termination: Solder pin for center contact, crimp for outer shield
• Cable Compatibility: Designed for LMR-240, TCOM-240, FBT-240, and similar 240-series cables
• Coupling Mechanism: Threaded, compatible with MIL-C-39012 standard N-Type connectors
