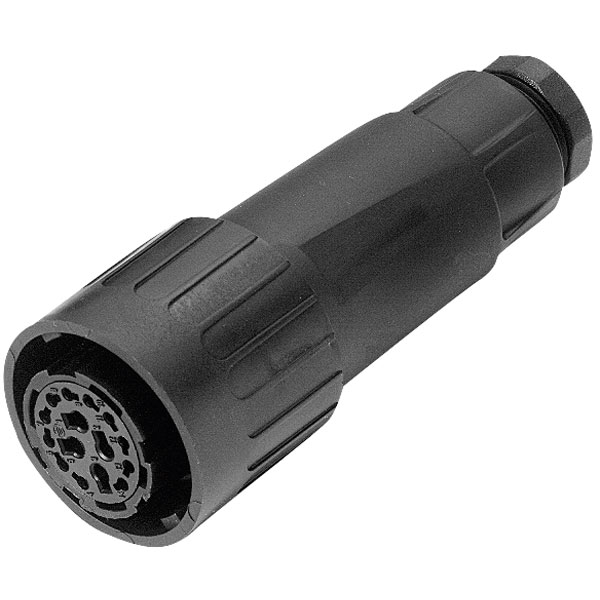

Amphenol C016 10E017 002 1 Cable socket straight C16-3 Number of pins: 17 + PE

An Amphenol C 16-3 shell size 1, female cable-mount connector for crimp contacts, style I, without contacts and with internal cable clamp.

• Cross section: 0.14 - 2.5mm²
• Connection: Crimp
• Case material: Polyamide 6.6
• Nominal voltage: 100V
• Nominal current: 6A
• Number of pins: 17 + PE
• Manufacturer part No.: C016 10E017 002 1
• Required connectors: 74 07 77 or 74 07 90
• Seal: Bayonet locking
• Protection type: IP65
• Contact material: Silver plated
• Temperature range: -40 - +125°C

Contacts not included.

Type	Cable Plug
Connector Size	10 mm dia
Gender	Socket
IP Rating	IP65
Number of pins	17 + PE
Temperature Range	-40 - +125°CP /P
