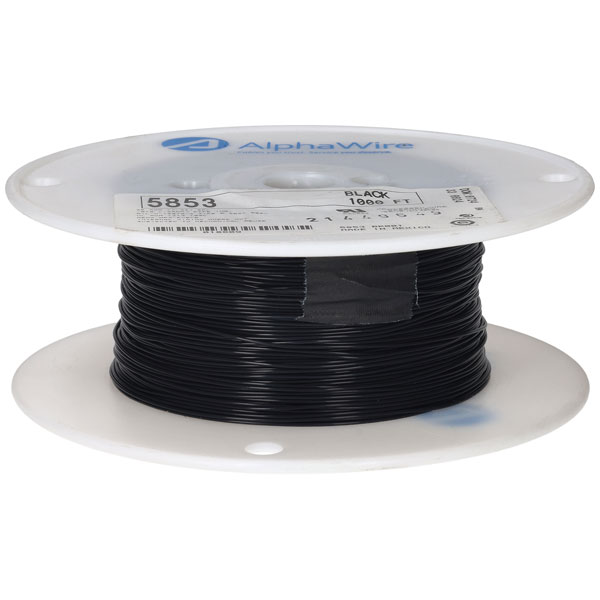

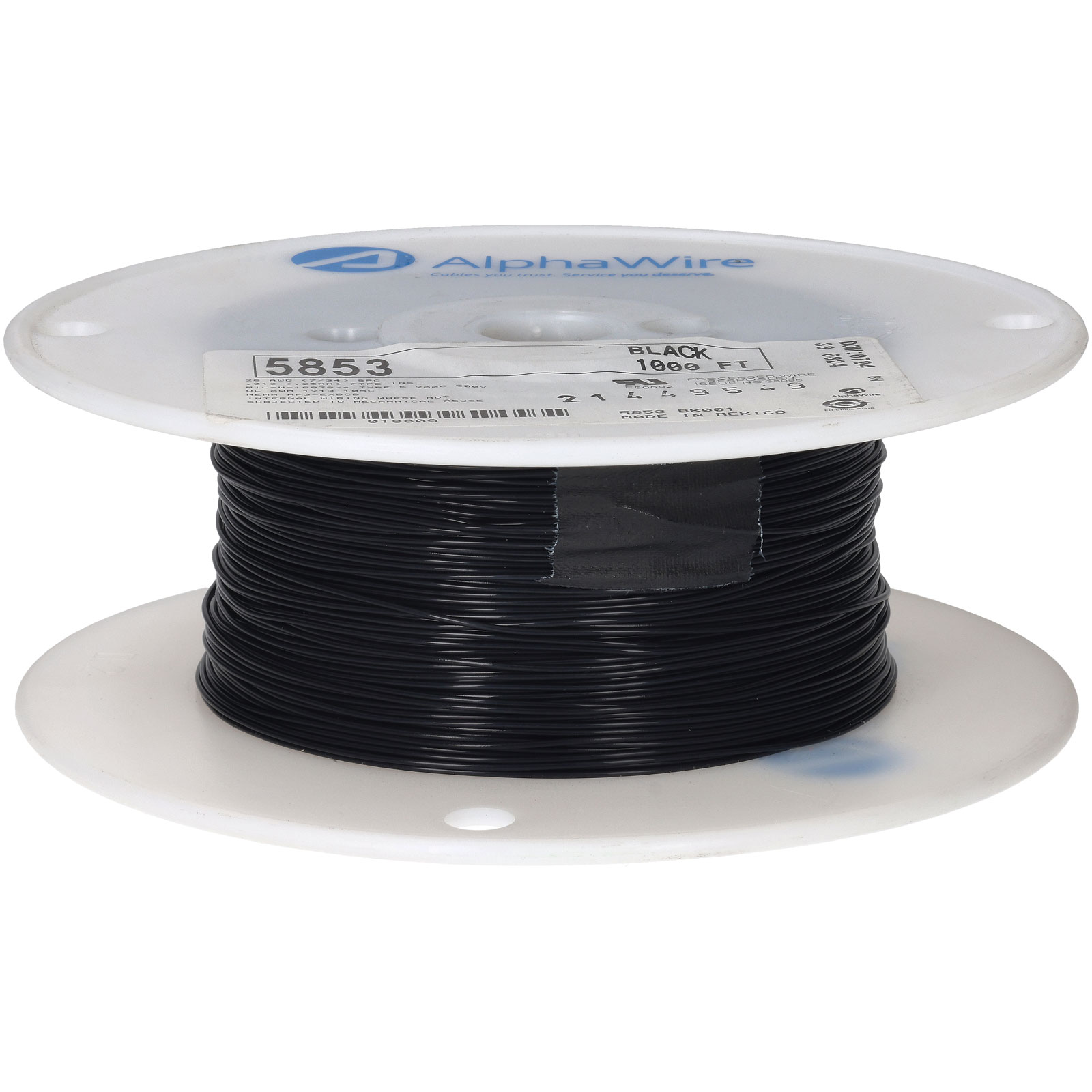

Alpha Wire 5853 BK001 26 AWG PTFE Black Hook Up Wire 1KFT UL1213 - The Alpha Wire hook-up wire is custom-tailored to specific applications, ranging from secure control cabinets to high-temperature ovens and off-road construction equipment.
With a variety of insulations available, these wires are designed to withstand different temperature ranges, offer excellent wear and abrasion resistance, and meet diverse electrical performance requirements.
- Cross Sectional Area: 0.14 mm²
- Sheath Colour: Black
- Cable Shape: Stranded
- American Wire Gauge: 26 AWG
- Core Strands: 19/38
- Length: 1000ft
- Insulation Material: PTFE
- Series: 5853/19
As strategic distributors of Alpha Wire's industry-leading range of industrial, communications and control cables, wire and tubing solutions, Rapid is delighted to announce a new sourcing service for customers.
We can offer access to the complete Alpha Wire catalogue – so even if we do not stock the product or line you need, we can order and despatch it for you. All lines are available on short lead times.
Our quotes team can talk to you about discounts on volume, schedule and call off orders. Please complete the product/quote form and we will respond as soon as possible.
| Colour |
Black |
| AWG |
26AWG |
| Conductor Cross Section |
0.14mm² |
| Number of Cores |
1 |
| Conductor Stranding |
19/38 |
| Insulation Material |
PTFE |
| Length |
304.8m |
| Type |
Equipment Wire |
| Cable shape |
Stranded |
| Conductor AWG |
26 |
| Conductor Material |
Silver Plated Copper |
| Diameter (in) |
0.039 |
| Height |
2In |
| Material |
PTFE |
| Maximum Operating Temperature |
+200°C |
| Minimum Operating Temperature |
-60°C |
| Operating Temperature |
-60 to 200° |
| Series |
5853/19 |
| Shielding |
UNSHIELDED |
| Stranding |
7/34 |
| Voltage |
600 |
| Voltage Rating |
600V |
| Weight |
2Kg |
| Width |
6.5In |
