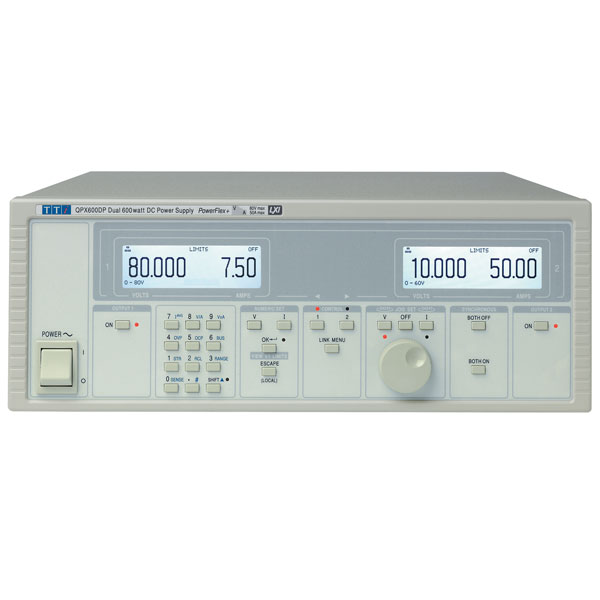

The Aim-TTi QPX600D is a dual output dc power supply with a maximum
total output power of 1200 watts and is suited to both bench-top and system
applications.
The QPX600D incorporates full digital remote control using USB, RS-232, LAN
and GPIB interfaces with analog remote control.
The Aim-TTi PX600D is
a different type of laboratory power supply designed to meet the need for
flexibility in the choice of voltage and current. A conventional PSU has a fixed
current limit giving a power capability that reduces directly with the output
voltage.
The Aim-TTi PowerFlex+ design of the QPX600D enables higher currents
to be generated at lower voltages within an overall power limit envelope. Each
output can provide more than six times the current of a conventional PSU of the
same maximum voltage and power (see power curve).
PowerFlex+ uses a balanced multi-phase converter system to minimise ripple
and improve dynamic performance. Example voltage/current combinations include
80V/7.5A, 60V/10A, 40V/15A, 28V/20A, 18V/30A and 10V/50A. The QPX600D can be
operated as two entirely independent power supplies, each with its own
comprehensive graphic LCD display.
- Dual independent or tracking 600W outputs
- Ultra wide range of voltage/current combinations
- Up to 80V and up to 50A within each power envelope
- Isolated tracking of voltage only, or voltage and current
- Smart metering and tracking functions facilitate series or parallel wiring
for up to 160V or 100A
- Low output noise and ripple
- High setting resolution of 1mV
- Variable OVP and OCP trips
- Analog control interfaces for voltage and current
- Not recommended for use as a battery charger.
- Manufacturer's part no. Aim-TTi
QPX600D
| Output Voltage |
80V |
| Number of Outputs |
2 |
| Power Rating |
1200W |
| Input Voltage |
+5 to +40V |
| Output Current Max. |
50A |
| Output Current Min. |
0A |
| Output Voltage Min. |
0V |
| Temperature Range |
+5 to +40°C |
