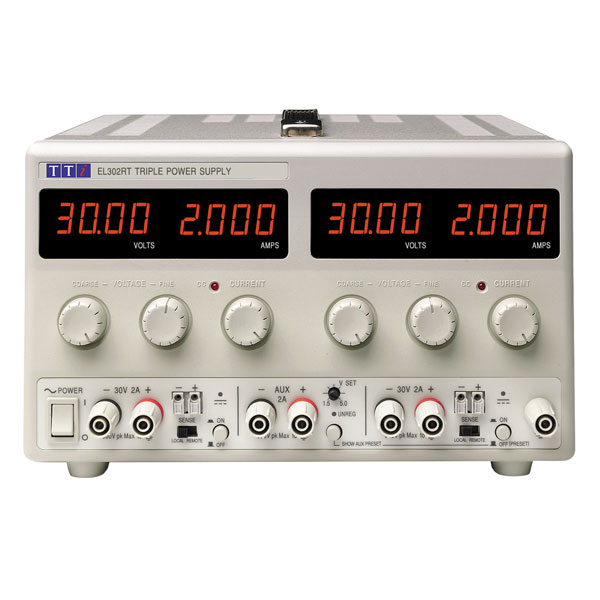

The Aim-TTi EL302RT has been developed from the top selling EL
series. By adding four digit meters and switchable remote sensing, the Thurlby
Thandar EL302RT offers much higher precision whilst retaining the simplicity of
operation which many bench-top power supply users prefer.
The Aim-TTi EL302RT uses true linear regulation for the best possible
performance. Excellent line and load regulation is matched by very low output
noise and good transient response.
It also incorporates separate voltage and current meters on each main output
with a resolution of 10mV and 1mA. The fixed resolution avoids the
misinterpretation of readings that can occur with auto-ranging 3 or 3½ digit
meters where the decimal point position moves as the reading changes.
Each main output of the Thurlby Thandear EL302RT has a DC on-off switch. This
enables voltage and current settings to be viewed before the load is connected
and allows multiple outputs to be controlled individually. Surprisingly, many
power supplies omit this essential feature.
The Aim-TTi EL302RT uses
classic analog controls for voltage and current. The large and bright displays
have a fixed resolution to avoid confusion. Preset voltage and current levels
are shown when the DC output switch is turned off. Remote sense is available
when needed but is disabled by setting the switch to local.
- Single outputs, 30V/1A, 18V/3.3A, 56V/1.1A, 15V/5A, 30V/3A
- Single, dual or triple outputs, 30V/2A
- Independent digital voltage and current meters for each output with 4
digit resolution
- Switchable local or remote sensing
- Constant voltage or constant current operation
- Variable 1.5 to 5.0V auxiliary output at 2A (EL302RT)
- Compact design uses less bench space
- Silent fan-free cooling
- DC output switches, automatic mode indication
- Manufacturer's part no. Aim-TTi
EL302RT
Not recommended for use as a battery charger.
Number of Outputs |
3 |
Output Voltage Min. |
0V |
Output Voltage Max. |
30V |
Output Current Min. |
0A |
Output Current Max. |
2A |
Power Rating |
320W |
Supply Voltage Range |
230V |
Temperature Range |
+5 to +40°C |
