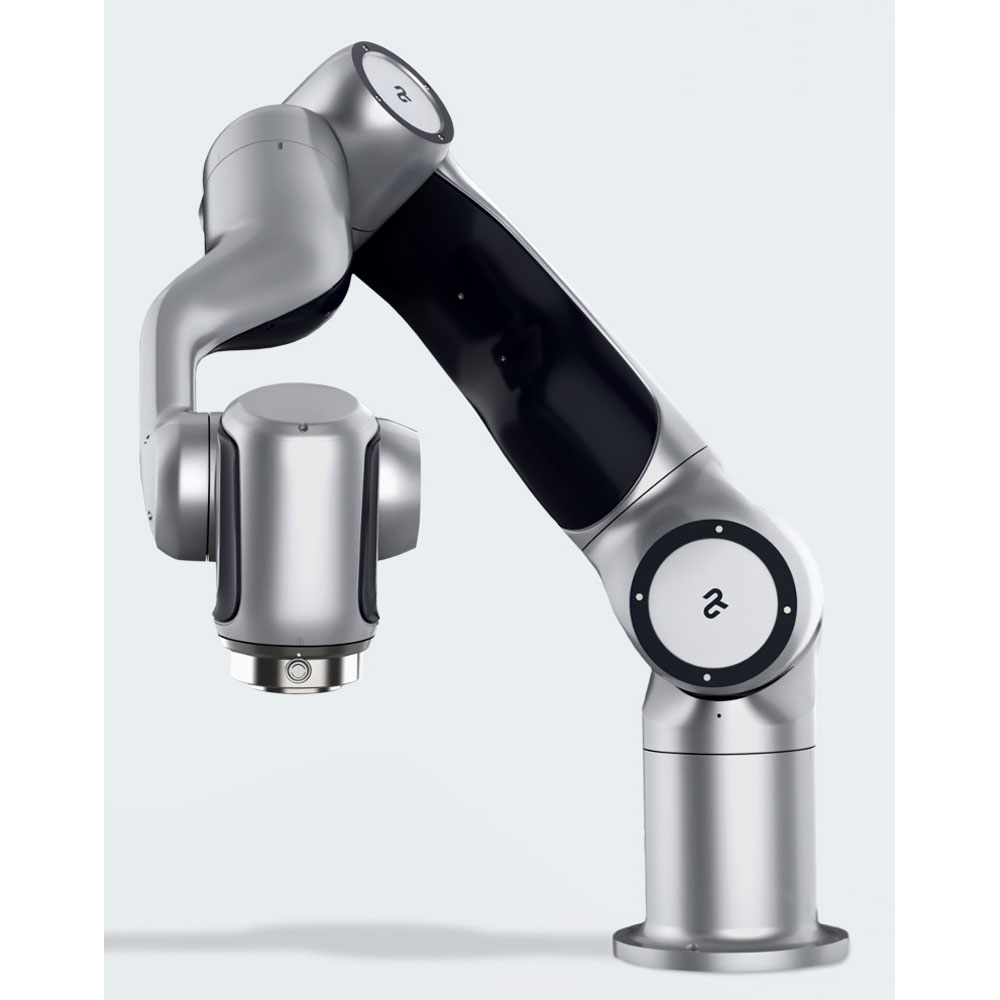

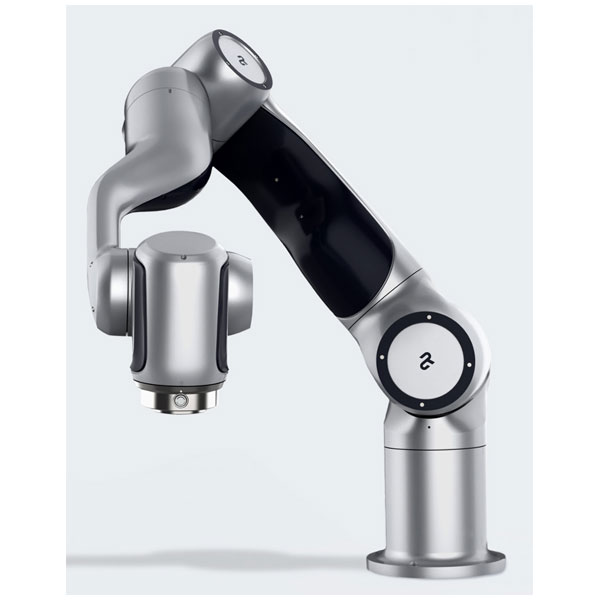

The Agile Robots Diana 7 is a seven-axis, force-controlled robotic arm designed for high-precision and flexible automation tasks. Equipped with torque sensors in all seven axes, it enables sensitive interaction with its environment and supports complex operations across a range of industrial applications. The system is supported by AI-driven software for intuitive setup, programming and integration.
Its anthropomorphic kinematics and additional seventh axis provide enhanced dexterity and smoother motion compared to conventional six-axis robots. This enables improved manoeuvrability in confined or complex working environments. With a payload capacity of up to 7kg and a reach of 923mm, the Diana 7 is suitable for handling components of varying sizes and weights.
The robot offers repeatability of ±0.05mm, supporting consistent and accurate positioning in precision tasks. It is designed for ease of use, with user-friendly operation enabling efficient teaching of positions and tasks, as well as straightforward maintenance and servicing.
Key Features
- Seven-axis robotic arm for enhanced flexibility and dexterity
- Integrated torque sensors in all axes for force-controlled operation
- Payload capacity: up to 7kg
- Maximum reach: 923mm
- Repeatability: ±0.05mm
- AI-supported software for setup, programming and integration
- Anthropomorphic design for intuitive operation
- Suitable for complex and precision handling tasks
Typical Applications
- Assembly and component handling
- Test and inspection processes
- Electronics manufacturing (3C)
- Automotive production tasks
- Precision pick-and-place operations
| Maximum Payload |
7kg |
| Number of Axis |
7 |
| Maximum Reach |
923mm |
| Manufacturers Warranty |
1 Year |
| Repeatability |
±0.05mm |
