Adels-Contact 19964 Screw Terminal 5 Pins 0.5-2.5 Mm² Flexible & Fixed

Adels-Contact
Order Code:

11-2027

Brand: Adels-Contact MPN: 19964 EAN-13: 4028012100347
Qty Unit Price (Ex VAT)
2+ £2.21
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 5 weeks

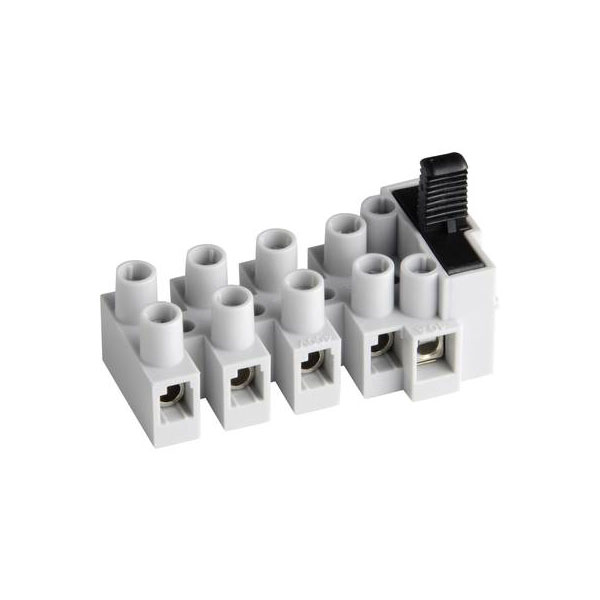

The Adels-Contact 19964 screw terminal features both flexible and fixed cable compatibility ranging from 0.5-2.5 mm² and includes five pins. It is a eu standard connector commonly used for secure electrical connections in various domestic and industrial applications. This lustre terminal is suited for safe and efficient wiring solutions.
Type Screw terminal
Clamping range diameter mm 2.5mm²
Contact Material Spring steel, stainless
Cross Section 2.5mm²
Cross section (flexible) (max.) 2.5mm²
Cross section (flexible) (min.) 0.5mm²
Cross section (inflexible) (max.) 2.5mm²
Cross section (inflexible) (min.) 0.5mm²
Insulation Material PA 6.6
Misc Attribute 503 SI/5 DS
Nominal Current 10A
Nominal current - rounded value 10A
Nominal Voltage 380V AC
Nominal voltage (details) Fuse holder 250 V / AC
Connection terminals 380V AC
Number of Pins 5
