The ABUS LS1020 Ecoline Infrared Light Beam is easy-to-install and for both indoors and outdoors - the light barrier monitors an area of up to 20m. Smart anti-sabotage protection of the transmitter and receiver guarantees the highest level of operational safety, making it ideal in combination with our alarm systems for monitoring hallways, doors, or parking spaces.
Clever solutions such as video monitoring system control or illumination control can also be easily implemented, while one advantage over PIR motion detectors is that the Ecoline infrared light beam only detects movement passing through a precisely defined line and does not detect motions inside an area. Thus, passers-by are not detected as long as they do not walk through the invisible line.

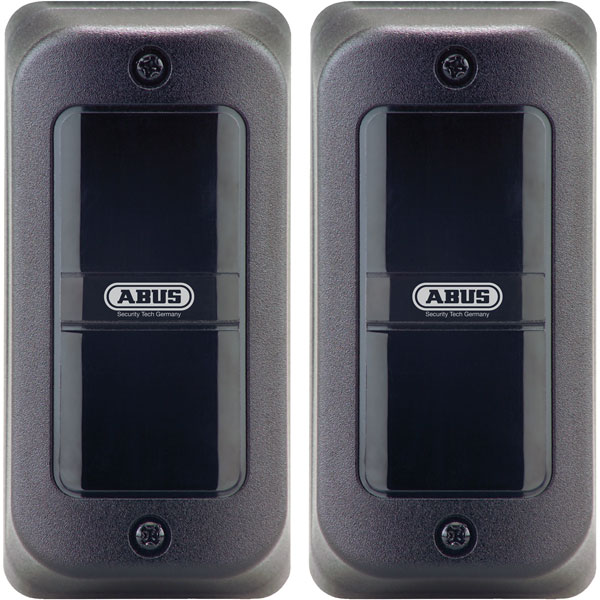

Delivery kit: Infrared transmitter (Tx) with a faceplate, infrared receiver (Rx) with a faceplate and 4 housing screws.
LS1020Suitable for interior room monitoring, passive trap systems, external shell protection, free-land monitoringOptimal for smaller properties46 x 95 x 34mm (W x H x D)Alarm output: (Rx) relay (NO/NC) 1A/120V AC; tamper output: (Tx/Rx) NC contact 1A/120V ACInfrared radiation measurement20m detection range ABS housing material0.24 power consumption60°C max. operating temperature20m max. detection range (outside and inside)Indoors and outdoors installationTamper monitoringIP66 protection classInfrared module24V AC voltage supply12V DC voltage supplyStatus display50mA power consumption
| Type |
Light beam |
| Detection |
N/A |
| Wireless |
No |
| Range |
20m |
