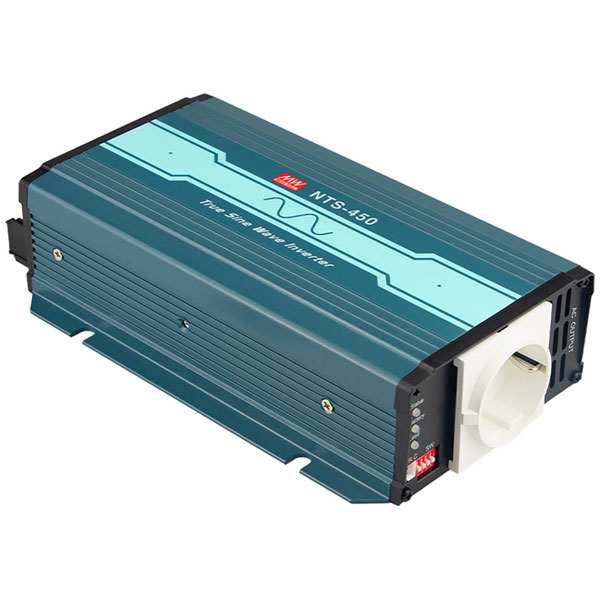

3018556 - Mean Well NTS-450-248EU

The Mean Well NTS-450-248EU is a DC to AC inverter that converts 48 V DC to 230 V AC, providing reliable power conversion for various applications. It is designed with screw terminals for secure connections and is suitable for systems that require converting battery or solar power to standard mains electricity. Typically used in off-grid solar power systems, mobile power systems, and in situations requiring portable AC power from DC sources.

Number of Outputs	1
Connection	Screw terminal
Height	55.00mm
Length	210mm
Max. power	450W
Maximum Input Volage	48V DC
Maximum Operating Temperature	70°C
Operating temperature (min.)	-25°C
Output	PG socket
Output Voltage	230V AC
Signal output type	Sine wave
Test mark	IEC 62368-1,EN 62368-1
Type	Inverter
Weight	1300g
Width	130.00mm
