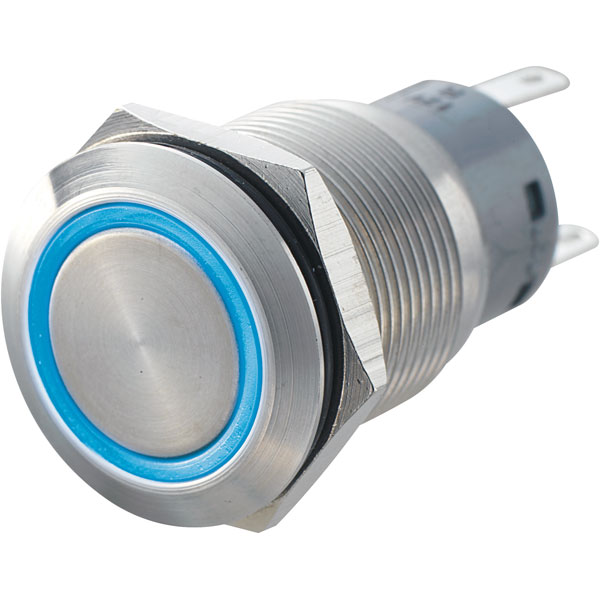

Zip Switch 19mm IP67 Vandal Resist Latch. On-On Switches w Ring Illumination

Zip Switch Brand: Zip Switch
<p>These 19mm vandal resistant latching switches are available in SPST and DPST versions, with a choice of three coloured LEDs that provide a ring illumination.</p>
  • Maintained-Maintained
  • IP67 protection
  • 12V LED with integral resistor
The LED can be controlled separately.
Description Image Product Buy Qty Pricing (Ex VAT) Action Contact Configuration Illumination Colour(s) Type Illumination Type Max. Current
Zip Switch LAS1-AGQ-11ZE Red 19mm IP67 Vandal Resistant SPST On-On Red LED
Zip Switch LAS1-AGQ-11ZE Red 19mm IP67 Vandal Resistant SPST On-On Red LED
Standard range
Order code: 50-5733
MPN: 701316

63 in Stock, despatched in 4 days
1+ £11.78
Off / (on) SPST Red Push-button Ring 5A
Zip Switch LAS1-AGQ-11ZE Green 19mm IP67 Vandal Resistant SPST On-On Green LED
Zip Switch LAS1-AGQ-11ZE Green 19mm IP67 Vandal Resistant SPST On-On Green LED
Standard range
Order code: 50-5734
MPN: 701318

812 in Stock, despatched in 4 days
1+ £11.29
Off / (on) SPST Green Push-button Ring 5A
Zip Switch LAS1-AGQ-11ZE Blue 19mm IP67 Vandal Resistant SPST On-On Blue LED
Zip Switch LAS1-AGQ-11ZE Blue 19mm IP67 Vandal Resistant SPST On-On Blue LED
Standard range
Order code: 50-5735
MPN: 701319

896 in Stock, despatched in 4 days
1+ £10.97
Off / (on) SPST Blue Push-button Ring 5A
Zip Switch LAS1-AGQ-22ZE Blue 19mm IP67 Vandal Resistant DPST On-On Blue LED
Zip Switch LAS1-AGQ-22ZE Blue 19mm IP67 Vandal Resistant DPST On-On Blue LED
Standard range
Order code: 50-5738
MPN: 701322

3,923 in Stock, despatched in 4 days
1+ £10.81
On / (on) DPST Blue Push-button Ring 5A
Order code50-573350-573450-573550-5738
Actuating force5.5N5.5N5.5N5.5N
ConnectionSolderSolderSolderSolder
Contact materialSilver alloySilver alloySilver alloySilver alloy
Contact resistance50mΩ50mΩ50mΩ50mΩ
Contact type1NO/1NC1NO/1NC1NO/1NC2NO/2NC
Dielectric strength2000V AC2000V AC2000V AC2000V AC
Front panel thickness1 to 10mm1 to 10mm1 to 10mm1 to 10mm
FunctionsMaintained-MaintainedMaintained-MaintainedMaintained-MaintainedMaintained-Maintained
Illumination typeKEYMATIC LED 12 ring lightingKEYMATIC LED 12 ring lightingKEYMATIC LED 12 ring lightingKEYMATIC LED 12 ring lighting
Installation diameter19mm19mm19mm19mm
Insulation resistance1000MΩ1000MΩ1000MΩ1000MΩ
LED colourRedGreenBlueBlue
MaterialStainless steelStainless steelStainless steelStainless steel
Protection typeIP67IP67IP67IP67
Switch positionSPST, On-OnSPST, On-OnSPST, On-OnDPST, On-On
Switching current5A5A5A5A
Switching voltage250V AC250V AC250V AC250V AC
Temperature range-20 to +70°C-20 to +70°C-20 to +70°C-20 to +70°C
Manufacturer's partLAS1-AGQ-11ZE, RedLAS1-AGQ-11ZE, GreenLAS1-AGQ-11ZE, BlueLAS1-AGQ-22ZE, Blue
