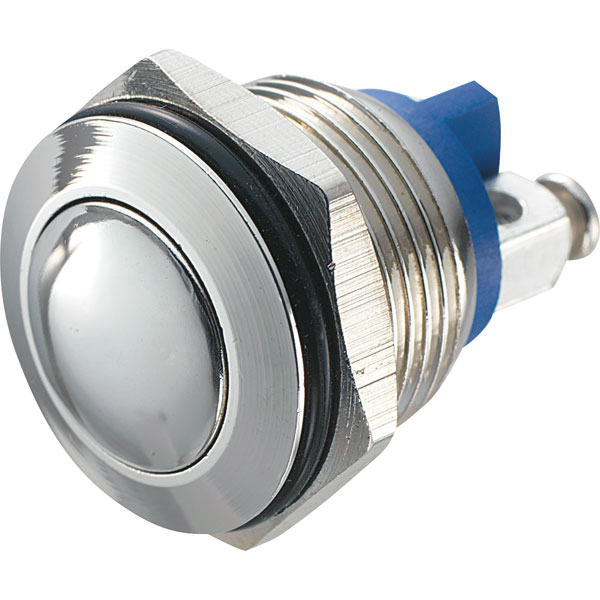

Zip Switch 16mm IP65 Vandal Resistant SPST, Off-On Switches

Zip Switch Brand: Zip Switch

These 16mm vandal resistant SPST, Off-On switches are available in a choice of three shapes - curved, flush and convex - and with a choice of materials.

Description Image Product Buy Pricing (Ex VAT) Illumination IP Rating Maximum Temperature Min. temperature Type Contact Configuration Current Rating Mounting Panel Cutout Dimensions
Zip Switch GQ 16B-N 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Zip Switch GQ 16B-N 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Standard range
Order code: 50-5685
MPN: 701271

Despatched within 4 working days - 1,711 in stock
2+ £3.40
Price per unit Ex VAT 		Push-button Off / (on) 2A Panel 16
Zip Switch GQ 16F-N (701274) 16mm IP65 Vandal Resistant SPST Off-(On)
Zip Switch GQ 16F-N (701274) 16mm IP65 Vandal Resistant SPST Off-(On)
Standard range
Order code: 50-5688
MPN: 701274

Despatched within 4 working days - 1,029 in stock
2+ £3.43
Price per unit Ex VAT 		Non-Illuminated Push-button Off / (on) 2A Panel 16
Zip Switch GQ 16F-S 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Zip Switch GQ 16F-S 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Standard range
Order code: 50-5690
MPN: 701280

Despatched within 4 working days - 1,706 in stock
1+ £4.23
Price per unit Ex VAT 		Non-Illuminated Push-button Off / (on) 2A Panel 16
Zip Switch GQ 16H-N 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Zip Switch GQ 16H-N 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Standard range
Order code: 50-5691
MPN: 701281

Despatched within 4 working days - 1,355 in stock
2+ £3.25
Price per unit Ex VAT 		Non-Illuminated Push-button Off / (on) 2A Panel 16
Zip Switch GQ 16H-G 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Zip Switch GQ 16H-G 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Standard range
Order code: 50-5692
MPN: 701282

Despatched same day - 2 in stockBack-order availability date - 01/07/2026
1+ £4.97
Price per unit Ex VAT 		Non-Illuminated Push-button Off / (on) 2A Panel 16
Zip Switch GQ 16H-S 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Zip Switch GQ 16H-S 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Standard range
Order code: 50-5693
MPN: 701283

Despatched within 4 working days - 899 in stock
1+ £4.21
Price per unit Ex VAT 		Non-Illuminated IP65 +70°C -20°C Push-button Off / (on) 2A Panel 16
Zip Switch SH1148 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Zip Switch SH1148 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Standard range
Order code: 50-5694
MPN: 701789

Despatched within 4 working days - 382 in stock
1+ £4.33
Price per unit Ex VAT 		Non-Illuminated +70°C -20°C Push-button Off / (on) 2A Panel 16
Zip Switch SH1150 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Zip Switch SH1150 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Standard range
Order code: 50-5696
MPN: 701816

Despatched within 4 working days - 166 in stock
1+ £4.33
Price per unit Ex VAT 		Non-Illuminated Push-button Off / (on) 2A Panel 16
Zip Switch SH1152 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Zip Switch SH1152 16mm IP65 Vandal Resistant Switch SPST Off-(On)
Standard range
Order code: 50-5698
MPN: 701843

Despatched within 4 working days - 1,390 in stock
1+ £4.46
Price per unit Ex VAT 		Non-Illuminated +70°C -20°C Push-button Off / (on) 2A Panel 16
Order code50-568550-568850-568950-5690
Actuating force5.5N5.5N5.5N5.5N
ConnectionScrew terminalsScrew terminalsScrew terminalsScrew terminals
Contact materialSilver alloySilver alloySilver alloySilver alloy
Contact resistance50mΩ50mΩ50mΩ50mΩ
Dielectric strength2000V AC2000V AC2000V AC2000V AC
Electrical life200000 cycles200000 cycles200000 cycles200000 cycles
Front panel thickness1 to 6mm1 to 6mm1 to 6mm1 to 6mm
FunctionsMomentaryMomentaryMomentaryMomentary
Installation diameter16mm16mm16mm16mm
Insulation resistance1000MΩ1000MΩ1000MΩ1000MΩ
Key typeCurvedFlush/conciseFlush/conciseFlush/concise
MaterialNickel-plated brassNickel-plated brassGold-plated brassStainless steel
Protection typeIP65IP65IP65IP65
Switch positionSPST, Off-(On)SPST, Off-(On)SPST, Off-(On)SPST, Off-(On)
Switching current2A2A2A2A
Switching voltage36V DC36V DC36V DC36V DC
Temperature range-20 to +70°C-20 to +70°C-20 to +70°C-20 to +70°C
Manufacturer's partGQ 16B-NGQ 16F-NGQ 16F-GGQ 16F-S
Order code50-569150-569250-569350-5694
Actuating force5.5N5.5N5.5N5.5N
ConnectionScrew terminalsScrew terminalsScrew terminalsSolder pins
Contact materialSilver alloySilver alloySilver alloySilver alloy
Contact resistance50mΩ50mΩ50mΩ50mΩ
Dielectric strength2000V AC2000V AC2000V AC2000V AC
Electrical life200000 cycles200000 cycles200000 cycles200000 cycles
Front panel thickness1 to 6mm1 to 6mm1 to 6mm1 to 6mm
FunctionsMomentaryMomentaryMomentaryMomentary
Installation diameter16mm16mm16mm16mm
Insulation resistance1000MΩ1000MΩ1000MΩ1000MΩ
Key typeRaised/convexConvexConvexCurved
MaterialNickel-plated brassGold-plated brassStainless steelStainless steel
Protection typeIP65IP65IP65IP65
Switch positionSPST, Off-(On)SPST, Off-(On)SPST, Off-(On)SPST, Off-(On)
Switching current2A2A2A2A
Switching voltage36V DC36V DC36V DC36V DC
Temperature range-20 to +70°C-20 to +70°C-20 to +70°C-20 to +70°C
Manufacturer's partGQ 16H-NGQ 16H-GGQ 16H-SSH1148
Order code50-569650-569750-5698
Actuating force5.5N5.5N5.5N
ConnectionSolder pinsSolder pinsSolder pins
Contact materialSilver alloySilver alloySilver alloy
Contact resistance50mΩ50mΩ50mΩ
Dielectric strength2000V AC2000V AC2000V AC
Electrical life200000 cycles200000 cycles200000 cycles
Front panel thickness1 to 6mm1 to 6mm1 to 6mm
FunctionsMomentaryMomentaryMomentary
Installation diameter16mm16mm16mm
Insulation resistance1000MΩ1000MΩ1000MΩ
Key typeFlush/conciseRaised/convexCurved
MaterialStainless steelNickel-plated brassStainless steel
Protection typeIP65IP65IP65
Switch positionSPST, Off-(On)SPST, Off-(On)SPST, Off-(On)
Switching current2A2A2A
Switching voltage36V DC36V DC36V DC
Temperature range-20 to +70°C-20 to +70°C-20 to +70°C
Manufacturer's partSH1150SH1151SH1152
