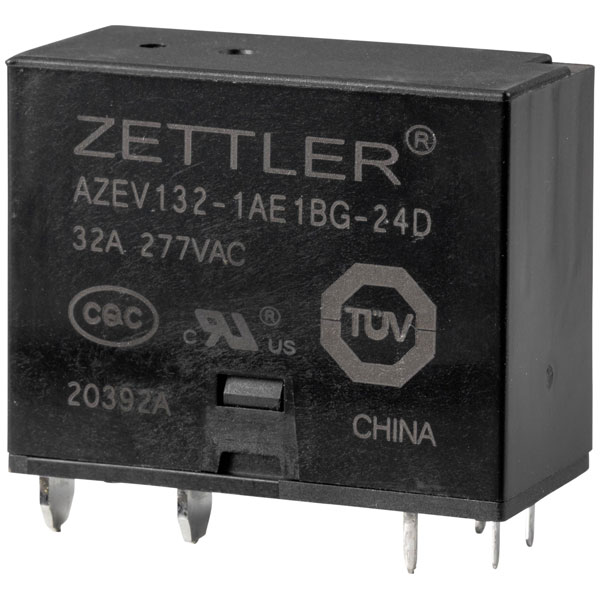

Zettler Electronics AZEV132-1AE1BG-24D Power Relay 24V DC 32A 1 Poll 1pc

Zettler Electronics
Order Code:

08-3718

Brand: Zettler Electronics MPN: AZEV132-1AE1BG-24D EAN-13: 4064161158068
Qty Unit Price (Ex VAT)
1+ £7.03
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
336 available to back orderBack-order availability date - 09/01/2026

The Zettler Electronics AZEV132-1AE1BG-24D is a power relay rated at 24 V DC and 32 A. It is designed for mounting on printed circuit boards, making it suitable for applications in compact electronic devices. Typical uses include switching and controlling high power loads in industrial and consumer electronics.
Type Power relay
Coil Voltage 24V DC
Switching Current 32A
Length 35mm
Width 16mm
Height 27.9mm
Connection Pins
Contact Material AgSnO2
Contact Type 1 maker
Dim (L x W x H) 35 x 16 x 27.9 mm
Factory colour Black
Insulation Voltage 277V AC
Max. pick-up voltage 28.8V DC
Max. switching capacity 12800VA
Max. temperature +85°C
Min. pick-up voltage 8.4V DC
Min. temperature -40°C
Resistance (coil) 372Ω
Switching voltage (max.) 277V AC
