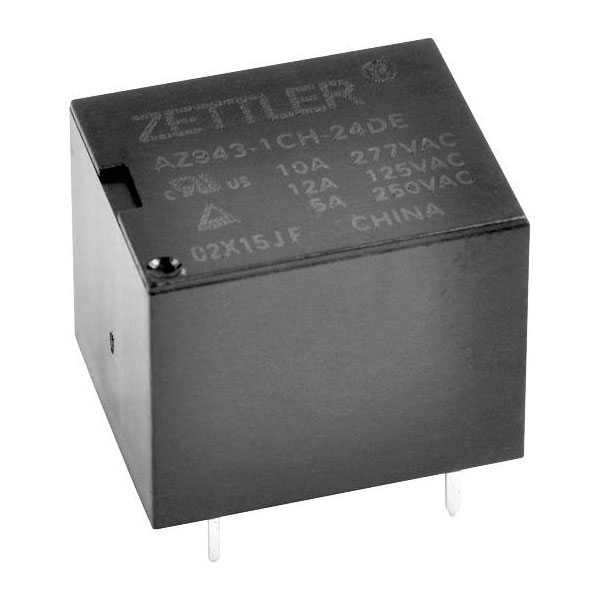

Zettler Electronics AZ943-1AH-24DE PCB Relay 24V DC 15A 1pc

Zettler Electronics
Order Code:

08-3693

Brand: Zettler Electronics MPN: AZ943-1AH-24DE EAN-13: 2050006598955
Qty Unit Price (Ex VAT)
5+ £1.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
3 in stock, despatched in 4 working days

The Zettler Electronics AZ943-1AH-24DE is a PCB mount relay operating at 24 V DC and supports a load of up to 15 A. It is designed for use on printed circuit boards, offering reliable switching performance in compact, space-saving applications. Commonly used in automotive and industrial control systems, this mini relay ensures efficient electrical control in small electronic devices.
Coil Voltage 24V DC
Contact Configuration 1NO
Switching Current 15A
Coil Resistance 1600Ω
Contact Material AgSnO2
Control Mode monostable, 1 coil
Dimensions (L x W x H) 19.00 x 15.30 x 15.70 mm
Durability 1 x 10E6
Height 15.70mm
Length 19.00mm
Max. pick-up Voltage 53.4V DC
Max. switching capacity 300W
Max. temperature +70°C
Min. pick-up Voltage 18V DC
Minimum Temperature -40°C
Mounting Type PCB
Response Time 10ms
Switching Voltage Max 30V DC
Type PCB relay
Width 15.30mm
