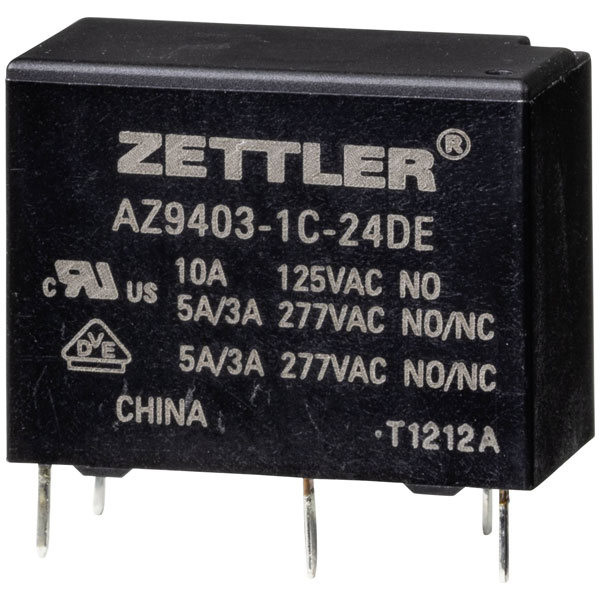

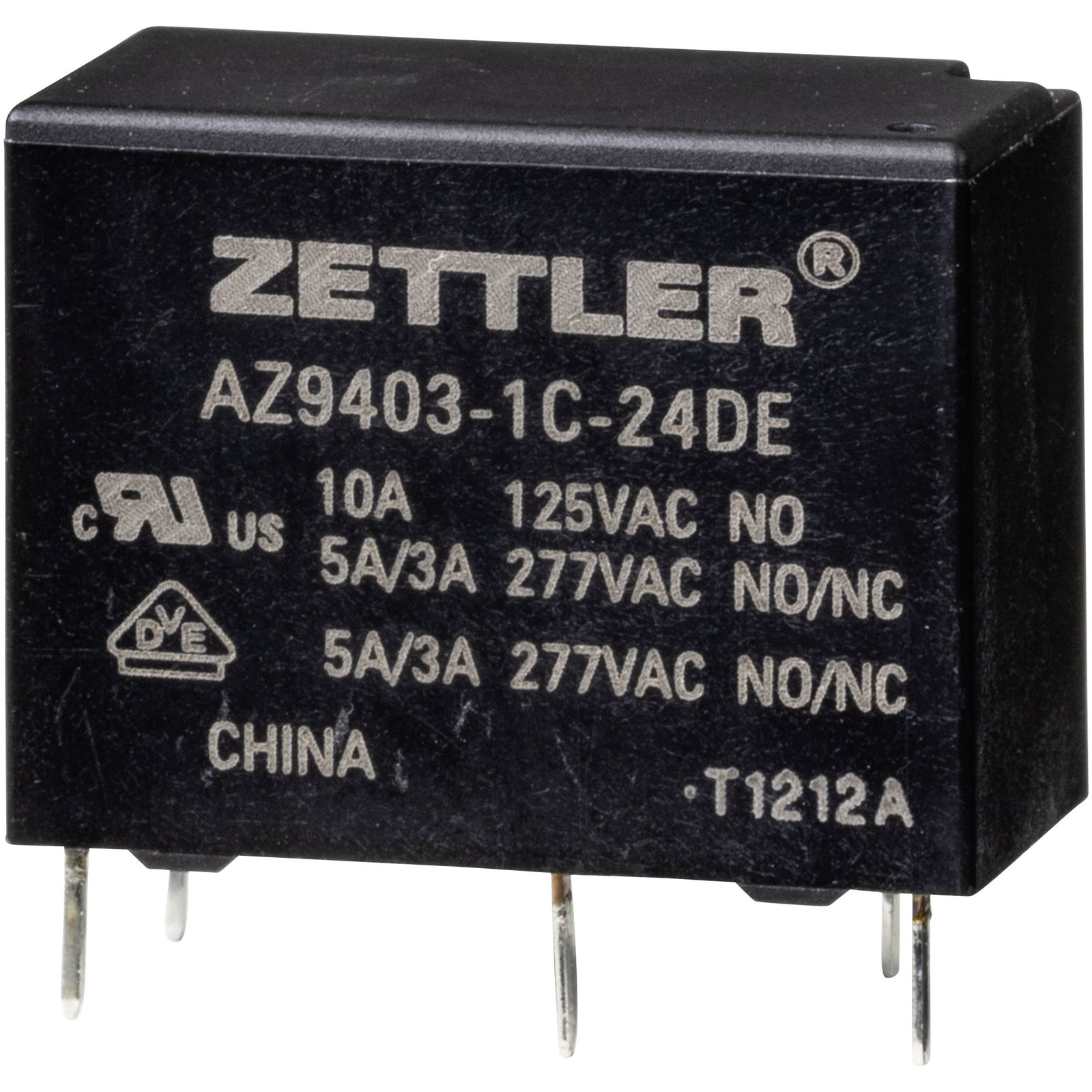

Zettler Electronics AZ9403-1C-24DE Power Relay 24V DC 5A 1pc

Zettler Electronics
Standard range
Order Code:

08-3567

Brand: Zettler Electronics MPN: AZ9403-1C-24DE
Qty Unit Price (Ex VAT)
1+ £1.58
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
136 in stock, despatched in 4 working days

Zettler Electronics offers the AZ9403-1C-24DE power relay featuring a 24 V DC coil voltage and a 5 A switching capacity. Designed for versatility, this mini relay is well-suited for printed circuit board applications. Ideal for use in control systems, it provides reliable performance in switching operations.
Height 15.3mm
Length 20.5mm
Type Power relay
Width 10.2mm
Coil nominal voltage 24V DC
Connection Pins
Contact material AgSnO
Control mode monostable, 1 coil
Dim (L x W x H) 20.5 x 10.2 x 15.3 mm
Insulation voltage 500V
Max. pick-up voltage 31.2V DC
Max. temperature 90°C
Min. pick-up voltage 18V DC
Min. temperature -40°C
Misc Attribute AZ9403-1C-24DE
Resistance (coil) 1280Ω
RoHS-compliant Yes
Switching current (max.) 5A
Switching voltage (max.) 277V AC
