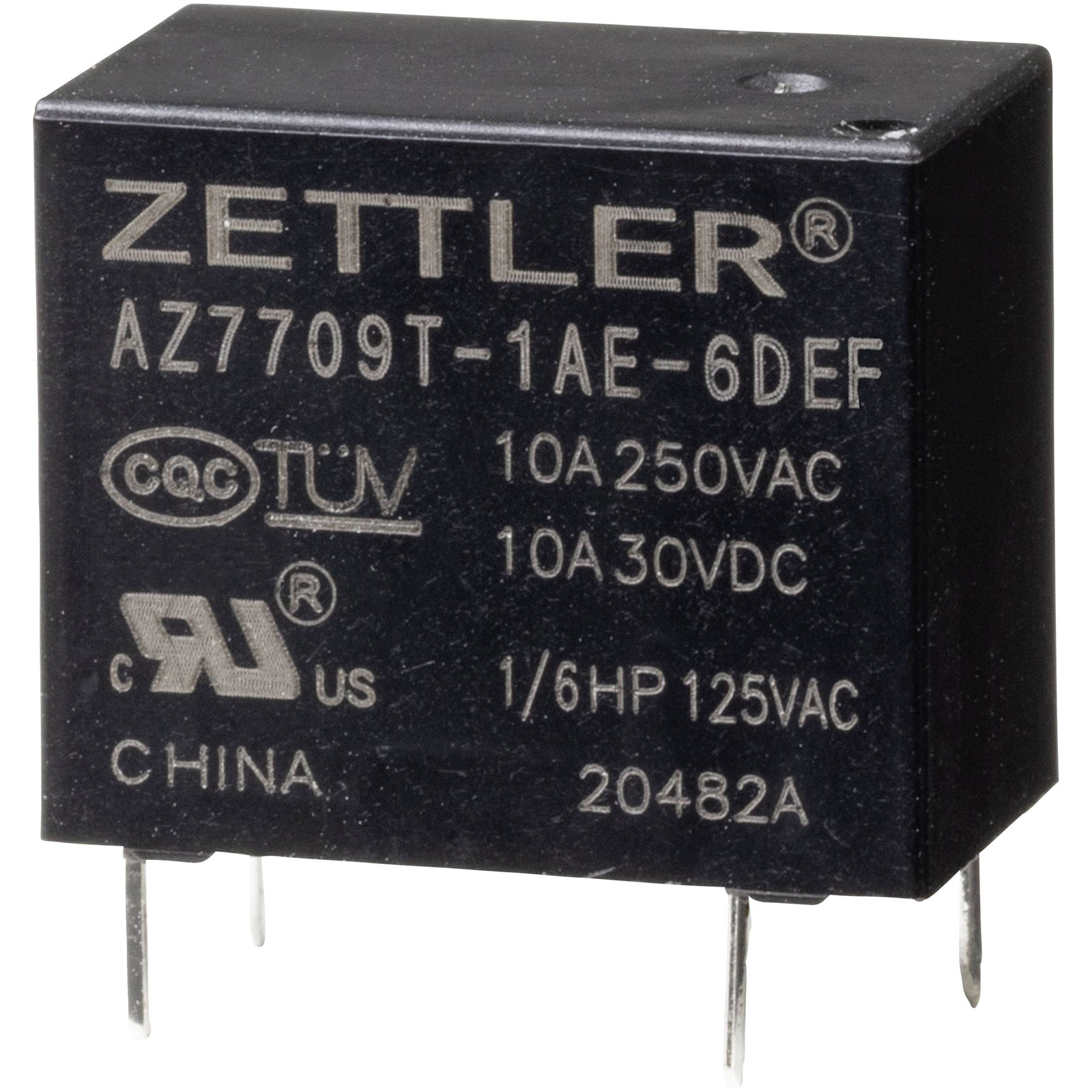

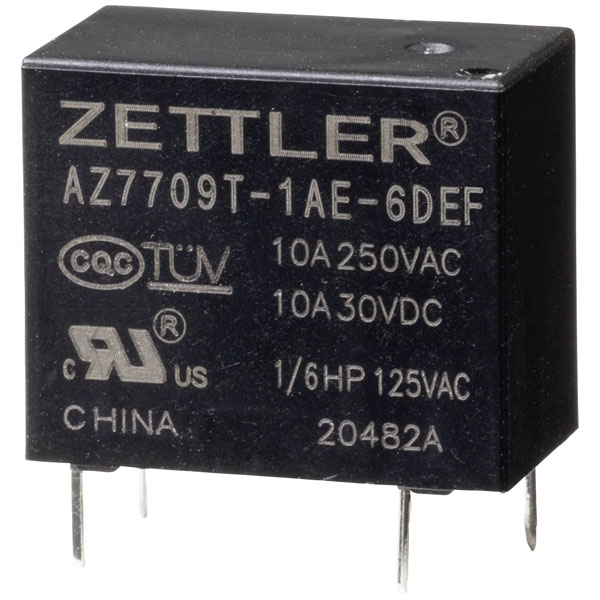

Zettler Electronics AZ7709T-1AE-6DEF Power Relay 6V DC 10A 1pc

Zettler Electronics
Order Code:

08-3563

Brand: Zettler Electronics MPN: AZ7709T-1AE-6DEF EAN-13: 4064161162782
Qty Unit Price (Ex VAT)
3+ £1.61
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
41 in stock, despatched in 4 working days

The Zettler Electronics AZ7709T-1AE-6DEF is a power relay designed for printed circuit board mounting, operating at 6 V DC with a 10 A current rating. This mini relay is suitable for applications requiring reliable switching in control systems and automation. It is ideal for use in compact electronic devices where efficient power management is essential.
Coil Voltage 6V DC
Switching Current 10A
Coil Resistance 80O
Connection Pins
Contact Material AgSnO
Control Mode monostable, 1 coil
Dimensions (L x W x H) 18.4 x 10.2 x 15.5 mm
Height 15.5mm
Insulation Voltage 500V AC
Length 18.4mm
Max. pick-up Voltage 7.8V DC
Max. temperature 85°C
Min. pick-up Voltage 4.2V DC
Minimum Temperature -40°C
Switching Voltage Max 250V AC
Type Power relay
Width 10.2mm
