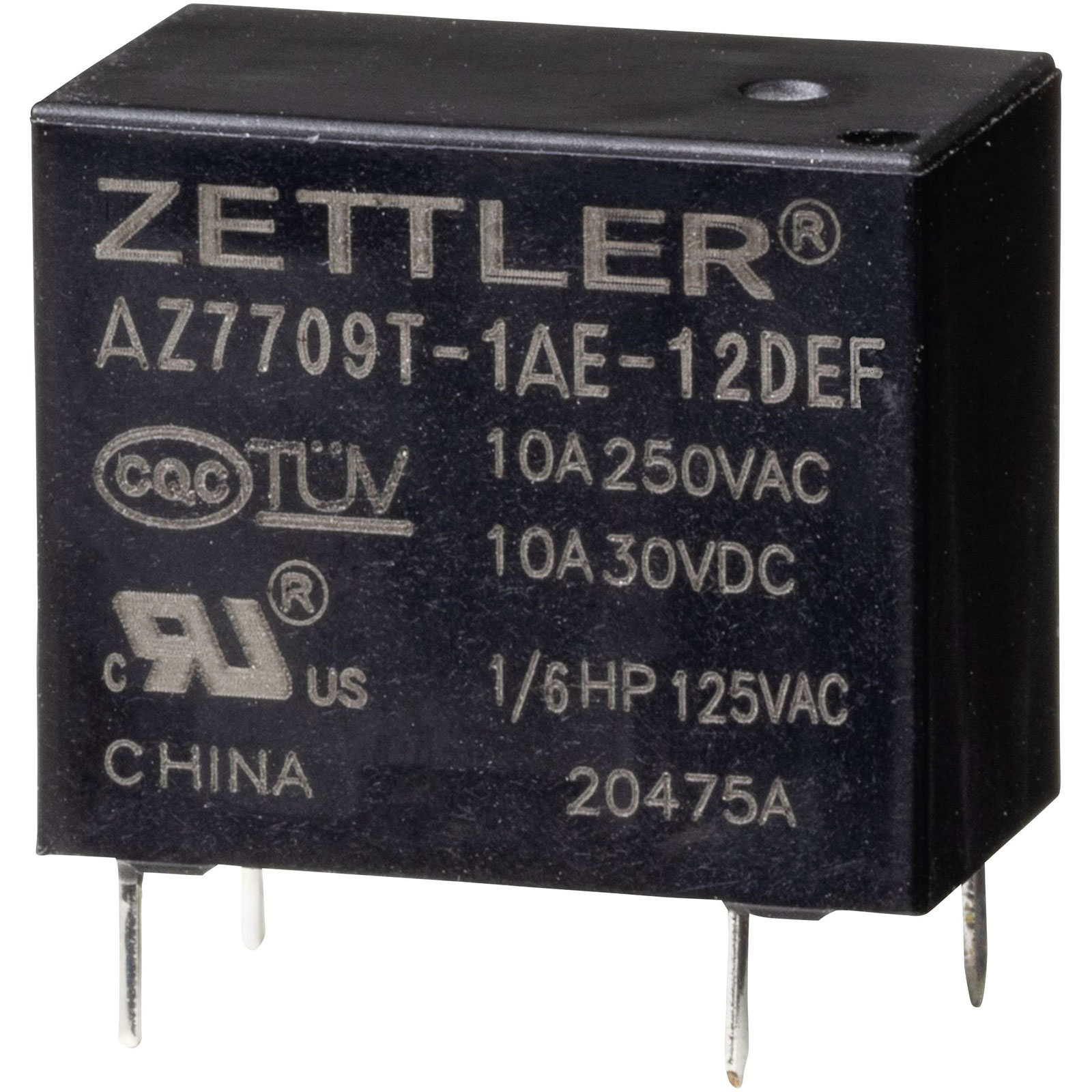

Zettler Electronics AZ7709T-1AE-12DEF Power Relay 12V DC 10A 1pc

Zettler Electronics
Standard range
Order Code:

08-3564

Brand: Zettler Electronics MPN: AZ7709T-1AE-12DEF
Qty Unit Price (Ex VAT)
1+ £1.56
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
216 in stock, despatched in 4 working days

The Zettler Electronics AZ7709T-1AE-12DEF is a power relay designed for use on printed circuit boards, capable of handling 10 A at 12 V DC. This mini relay is suitable for various automation and electronic applications, providing reliable switching capabilities. It's ideal for use in consumer electronics, automotive systems, and industrial equipment.
Height 15.5mm
Length 18.4mm
Type Power relay
Width 10.2mm
Coil nominal voltage 12V DC
Connection Pins
Contact material AgSnO
Control mode monostable, 1 coil
Dim (L x W x H) 18.4 x 10.2 x 15.5 mm
Insulation voltage 500V
Max. pick-up voltage 15.6V DC
Max. temperature 85°C
Min. pick-up voltage 8.4V DC
Min. temperature -40°C
Misc Attribute AZ7709T-1AE-12DEF
Resistance (coil) 320Ω
RoHS-compliant Yes
Switching current (max.) 10A
Switching voltage (max.) 250V AC
