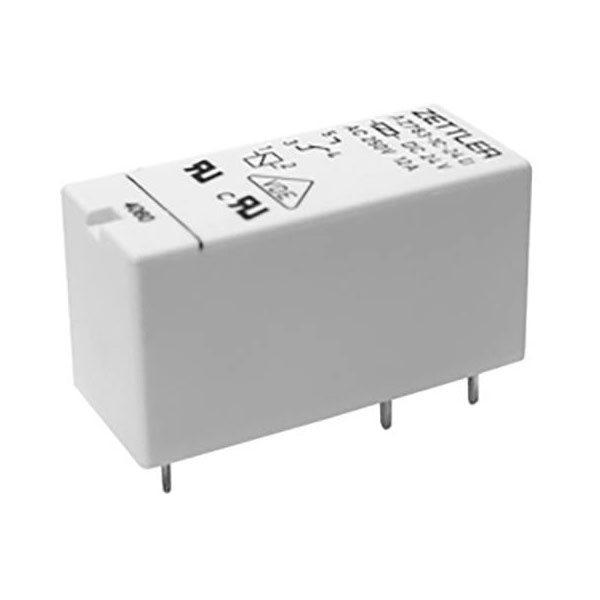

Zettler Electronics AZ763-1A-5D PCB Relay 5V DC 12A 1 Pole

Zettler Electronics
Order Code:

08-3618

Brand: Zettler Electronics MPN: AZ763-1A-5D EAN-13: 2050006577622
Qty Unit Price (Ex VAT)
2+ £2.21
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2 in stock, despatched in 4 working days

Zettler Electronics manufactures the AZ763-1A-5D PCB relay, which operates at 5 V DC and handles up to 12 A. This mini relay is designed for printed circuit board mounting and is suitable for surface mount applications. Typical uses include automation systems and other electronic devices requiring reliable control switching.
Coil Voltage 5V DC
Contact Configuration 1NO
Switching Current 12A
Coil Resistance 60Ω
Connection Solder pins
Contact Material AgNi
Control Mode monostable, 1 coil
Dimensions (L x W x H) 29 x 12.7 x 15.7 mm
Durability 3 x 10E7
Fall Time 3ms
Height 15.7mm
Length 29mm
Max. switching capacity 360W
Max. temperature +85°C
Minimum Temperature -40°C
Mounting Type PCB
Response Time 7ms
Type PCB relay
Width 12.7mm
