Zettler Electronics AZ742-2A-24DE PCB Relay 24V DC 10A 1pc

Zettler Electronics
Order Code:

08-3601

Brand: Zettler Electronics MPN: AZ742-2A-24DE EAN-13: 2050006592731
Qty Unit Price (Ex VAT)
2+ £2.53
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
20 in stock, despatched in 4 working days

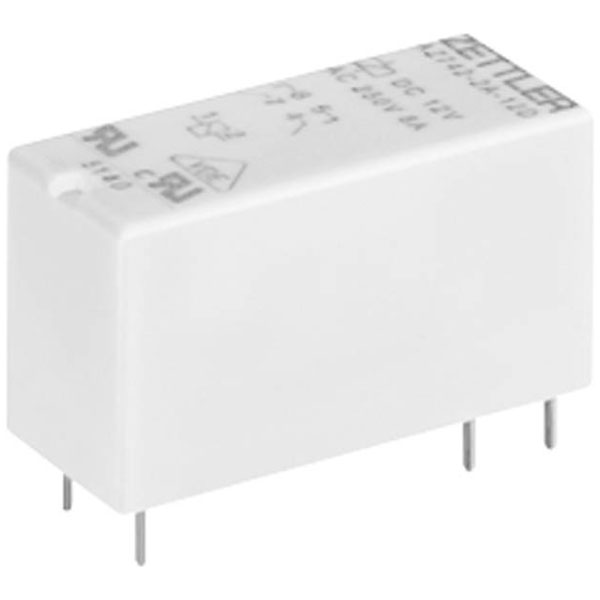

The Zettler Electronics AZ742-2A-24DE is a PCB mount relay designed for 24 V DC applications and can handle up to 10 amps. It features two makers, making it ideal for switching and control tasks in various electronic systems. This relay is commonly used in printed circuit board assemblies for its compact and reliable performance.
Coil Voltage 24V DC
Contact Configuration 2NO
Switching Current 10A
Coil Resistance 1440Ω
Contact Material AgNi
Control Mode monostable, 1 coil
Dimensions (L x W x H) 29.00 x 12.70 x 15.70 mm
Durability 3 x 10E7
Height 15.70mm
Length 29.00mm
Max. pick-up Voltage 61.2V DC
Max. switching capacity 240W
Max. temperature +85°C
Min. pick-up Voltage 16.8V DC
Minimum Temperature -40°C
Mounting Type PCB
Response Time 7ms
Switching Voltage Max 300V DC
Type PCB relay
Width 12.70mm
