WP Products 257-010-2-50-00-6 Connector Pins, Round 0.50mm, Square 0.25x0.45mm

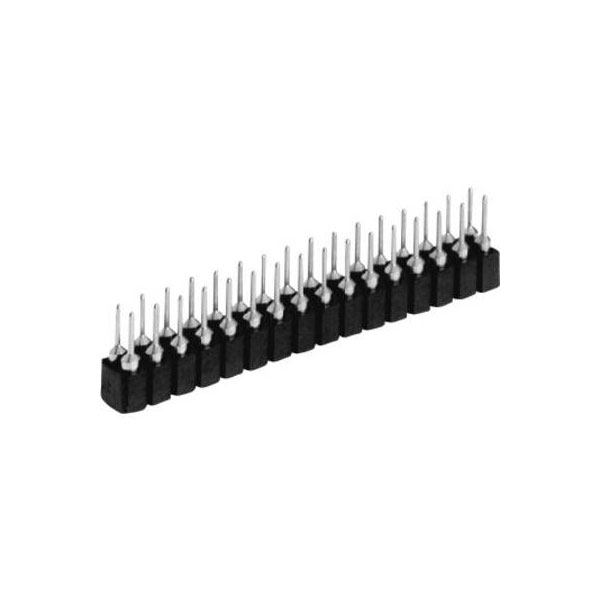

Image Representative of Range

WP Products 257-010-2-50-00-6 Connector Pins, Round 0.50mm, Square 0.25x0.45mm

W & P Products
Order Code:

10-9589

Brand: W & P Products MPN: 257-010-2-50-00-6 EAN-13: 2050001574596
Qty Unit Price (Ex VAT)
5+ £0.994
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
380 available to back orderBack-order availability date - 16/01/2026

W & P Products manufactures the 257-010-2-50-00-6, a precision receptacle. This component is known for its high accuracy and reliability. It is typically used in applications requiring exact electrical or signal connections.
Type Receptacles (precision)
Number of Positions 10
Number of Rows 2
Case Material Thermoplastic material
Colour Black
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Power strip, straight
Contact Material Copper alloy
Contact surface Tin plated
Cross Section 2mm
Dimensions (L x W x H) 10.00 x 7.40 x 4.20 mm
Height 4.20mm
Industrial packaging No
Length 10.00mm
Max. temperature +125°C
Min. temperature -55°C
Nominal Current 3A
Nominal Voltage 150V DC
Pin length (PCB) 3.20mm
Pin Ø 0.40mm
Pin shape Circular
Pins per row 5
Separable No
Socket depth 3.50mm
Width 7.40mm
