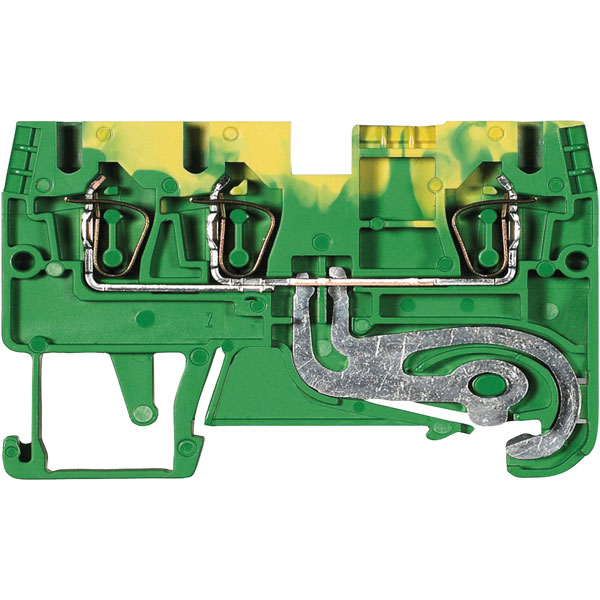

Wieland 56.703.9355.0 fasis Duo Earth DIN Block WKFN 2,5 D1/2/SL/35 Gr/Yell

Wieland's green/yellow fasis duo earth DIN block WKFN 2.5 D1/2/SL/35 is a terminal block for mounting onto a TS 35 DIN rail and has been given an approved ATEX rating for use in various zones. The secure and maintenance-free tension spring clamp remains simple to operate via a standard screwdriver which can be held securely in the terminal for optimal handling while connecting wires.

The block has an 800V rated voltage and is valid for fine-stranded wires with a cross section of 0.13–2.5mm², along with solid/stranded wires with a cross section of 0.13–4mm².

• Rated to Ex e I/II Ex II 2GD IM2
• 5 x 60 x 38mm (W x L x H)
• 11mm wire strip length
• Connect with or without ferrules
• Easy to wire front connection
• 1 level - 3 clamps
• PA 666 insulating housing
• Manufacturer's part 56.703.9355.0
