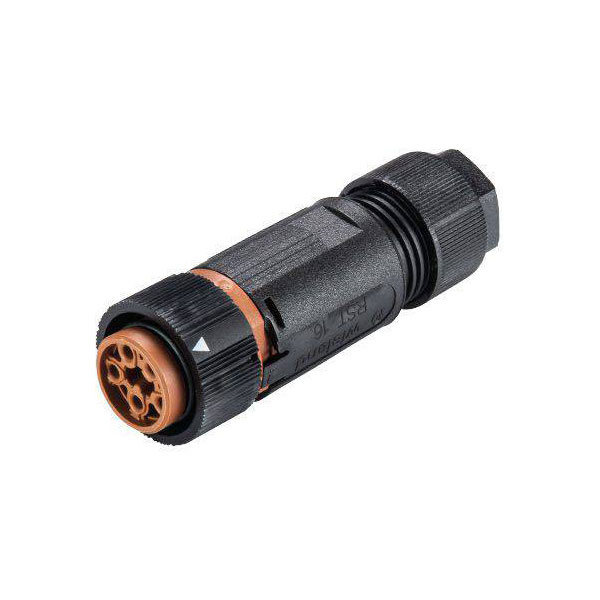

Wieland 46.051.4550.4 RST® MINI Bullet Connector 5 Pins Straight Plug

Wieland Electric manufactures the RST16I5 bullet connector, featuring a straight design with five pins. This connector, part of the RST® MINI series, is ideal for compact, efficient electrical connections. It is commonly used in applications requiring reliable and robust connector solutions.

Type	Bullet connector
Number of Contacts	5
Orientation	180°
Cable Diameter	7.1mm
Colour	Brown
Connection	Screws
Connector Type	Connector, straight
Cross Section	0.25mm²
Length	81mm
Max. temperature	+120°C
Min. temperature	-40°C
Mounting Type	Cable mount
Nominal Current	16A
Nominal Voltage	50V
Seal	Bayonet
Series	RST16I5 S B1 ZT6S L BR
