Wieland 46.031.5055.7 RST® MINI Socket 2+PE Pins Built-in Bullet Connector

Wieland
Order Code:

11-0301

Brand: Wieland MPN: 46.031.5055.7 EAN-13: 4049088279812
Qty Unit Price (Ex VAT)
1+ £8.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

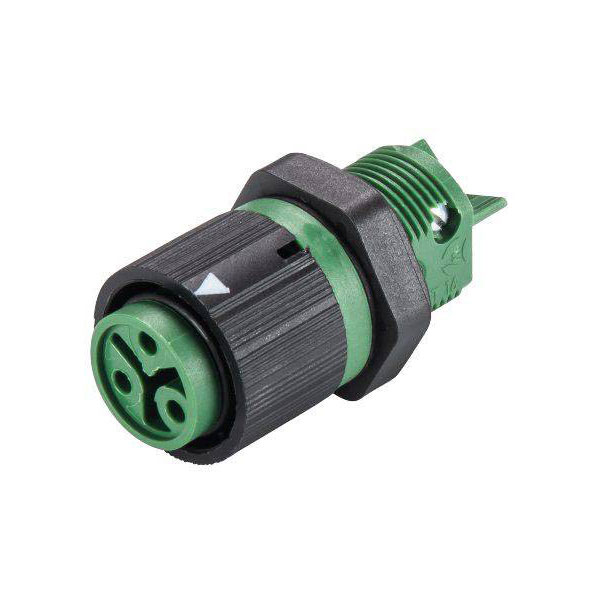

The Wieland Electric bullet connector, part number 46.031.5055.7, is a socket built into the RST® MINI series. It features a total of 2 pins plus PE and is typically used for reliable electrical connections in compact spaces. This connector is ideal for applications requiring round connectors, ensuring secure device connections in various industrial settings.
Type Bullet connector
Number of Contacts 2 + PE
Orientation 180°
Cable Diameter 0.25mm
Colour Green
Connection Screws
Connector Type Socket, built-in
Cross Section 0.25mm²
Length 41.90mm
Max. temperature +85°C
Min. temperature -40°C
Mounting Hole Diameter 19.90mm
Nominal Current 16A
Nominal Voltage 250V
Seal Bayonet
Series RST16I3 S B1 M02 GN
