Wieland 46.031.4555.7 RST® MINI Bullet Connector 2+PE Pins Straight

Wieland
Standard range
Order Code:

11-0181

Brand: Wieland MPN: 46.031.4555.7 EAN-13: 4049088280238
Qty Unit Price (Ex VAT)
1+ £6.57
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
27 in stock, despatched in 4 working days

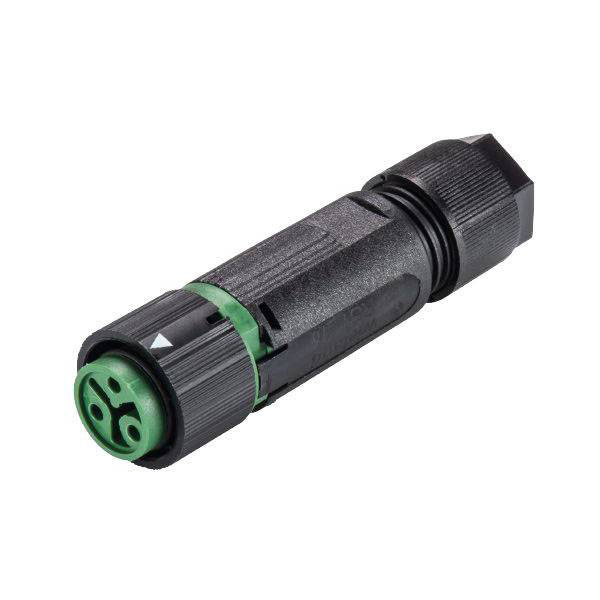

Wieland Electric's bullet connector is a straight, 2 + PE pin connector from the RST® MINI series. It features easy assembly and secure connections, making it ideal for industrial and automation applications. The connector ensures reliable performance in compact spaces.
Type Bullet connector
(Ø) 19.90mm
Cable Ø (max.) 9.5mm
Cable Ø range 5 - 9.5 mm
Cable Ø up to 5mm
Connection Screws
Connection angle 180°
Connector type Connector, straight
Cross-section range 0.25 - 1.5 mm²
Factory colour Green
Industrial packaging No
Leading contact (PE) Yes
Length 71mm
Manufacturer part # 46.031.4555.7
max. cross section 1.5mm²
Max. temperature +70°C
Min. cross section 0.25mm²
Min. temperature -25°C
Misc Attribute RST16I3 S B1 ZT4S GN
Nominal current 16A
Nominal current - rounded value 16A
Nominal voltage 250V
Number of pins 2
RoHS-compliant Yes
Seal Bayonet
Series RST® MINI
Total no. of pins 2 + PE
