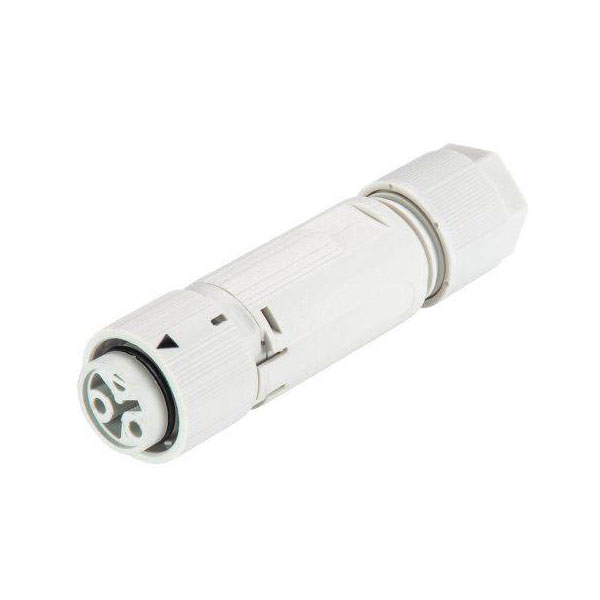

Wieland 46.031.4554.0 RST® MINI Bullet Connector 2-Pin Straight

Wieland
Standard range
Order Code:

11-0178

Brand: Wieland MPN: 46.031.4554.0 EAN-13: 4049088295737
Qty Unit Price (Ex VAT)
1+ £5.92
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
542 in stock, despatched in 4 working days

Wieland Electric's bullet connector is a straight, 2-pin connector part of the RST® MINI series, identified by model number 46.031.4554.0. It features robust construction, often utilised in electrical installations requiring reliable and compact connections. This connector is suitable for a variety of applications, including industrial and commercial electrical systems, ensuring efficient and secure connections.
Type Bullet connector
(Ø) 19.90mm
Cable Ø (max.) 9.5mm
Cable Ø range 5 - 9.5 mm
Cable Ø up to 5mm
Connection Screws
Connection angle 180°
Connector type Connector, straight
Cross-section range 0.25 - 1.5 mm²
Factory colour Grey
Industrial packaging No
Leading contact (PE) No
Length 71mm
Manufacturer part # 46.031.4554.0
max. cross section 1.5mm²
Max. temperature +85°C
Min. cross section 0.25mm²
Min. temperature -25°C
Misc Attribute RST16I3/2S B1 ZT4 GL
Nominal current 16A
Nominal current - rounded value 16A
Nominal voltage 250V
Number of pins 2
RoHS-compliant Yes
Seal Bayonet
Series RST® MINI
Total no. of pins 2
