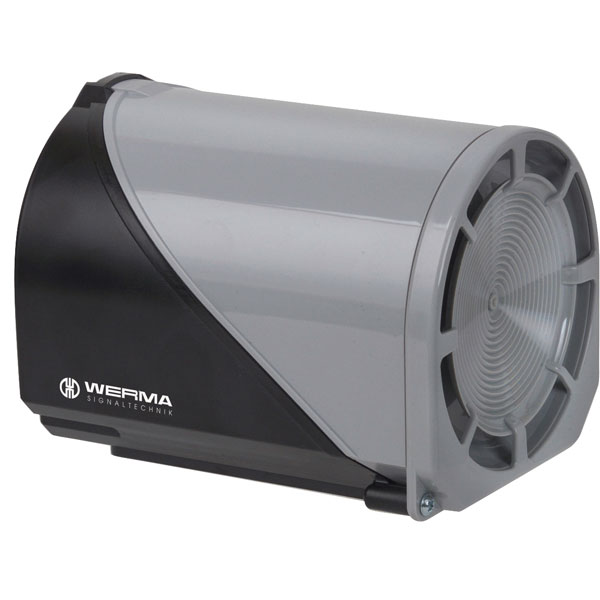

Werma Signaltechnik Multi Tone Sounder, 114dB

Werma Signaltechnik Brand: Werma Signaltechnik

A range of Werma Signaltechnik Multi Tone Sounders from the 144 Series. These sounders have a sound output of up to 114dB, making them ideal for large areas.

The sirens are able to play 32 tones for a wide range of applications. These products can be mounted on a wall, floor or ceiling.

  • Volume adjustable up to 114dB
  • 32 tones for different uses
  • 3 tones can be triggered externally
  • Housing PC/ ABS-Blend
  • Login/ connection: screw terminal with wire protection max. 1.5mm²
  • Cable entry: Cable sheath 13 mm diameter max
  • Mounting: Wall, floor and ceiling
  • Available with an input voltage of 24V AC/DC and 230V AC
Description Image Product Buy Pricing (Ex VAT) Connection Current Housing Insulation Voltage MTTFd-value [years] Operating Voltage Operating voltage type Overvoltage category Product Weight Rated inrush current Rated operational current Rated operational voltage Supply Voltage Weight with packaging Type Acoustic service life Acoustic signal image Cable Entry Cable entry maximum Cable entry minimum
Werma Signaltechnik 144.000.68 Multi Tone Sounder 32 Tone 110dB 230VAC
Werma Signaltechnik 144.000.68 Multi Tone Sounder 32 Tone 110dB 230VAC
Standard range
Order code: 63-9005
MPN: 144.000.68

Despatched within 4 working days - 6 in stock
1+ £178.72
Price per unit Ex VAT 		Spring-type terminal 30mA PC/ ABS-Blend Ui = 250V / Uimp = 2500V 230v AC II 450 100ma 30 230vac 230V 520 Siren 5,000 h minimum Multi-tone Membrane grommet d = 13 mm d = 1 mm
Werma Signaltechnik 144.000.75 Multi Tone Sounder 32 Tone 110dB 24VAC/DC
Werma Signaltechnik 144.000.75 Multi Tone Sounder 32 Tone 110dB 24VAC/DC
Standard range
Order code: 63-9006
MPN: 144.000.75

Despatched within 4 working days - 14 in stock
1+ £173.75
Price per unit Ex VAT 		Screw terminals 200mA 6155 24v AC/DC 315,00 g 500ma 200 24vdc 24V 380 Siren 5,000 h minimum Multi-tone Membrane grommet d = 13 mm d = 1 mm
Mftrs. Part No:144.000.68144.000.75
Order code63-900563-9006
Connection:CAGE CLAMP technologyScrewable connection
Fixing:Base/Bracket mountingBase/Bracket mounting
Colour:Black/greyBlack/grey
Cable entry:Diaphragm bushingDiaphragm bushing
Cable diameter:max. 13mmmax. 13mm
Sound output:114dB114dB
Service life:min. 5.000 hmin. 5.000 h
Protection rating:IP65IP65
Voltage:230V AC24V AC/DC
Voltage type:ACAC/DC
Current consumption:max. 30mAmax. 30mA
Temperature range:-30°C to +50°C-30°C to +50°C
Tone type:32 tones32 tones
Tone frequency:approx. 300 to 4000Hzapprox. 300 to 4000Hz
Housing material:PC/ABS-BlendPC/ABS-Blend
Width:109mm109mm
Height:150mm150mm
Depth:112.5mm112.5mm
Net weight:450g315g
