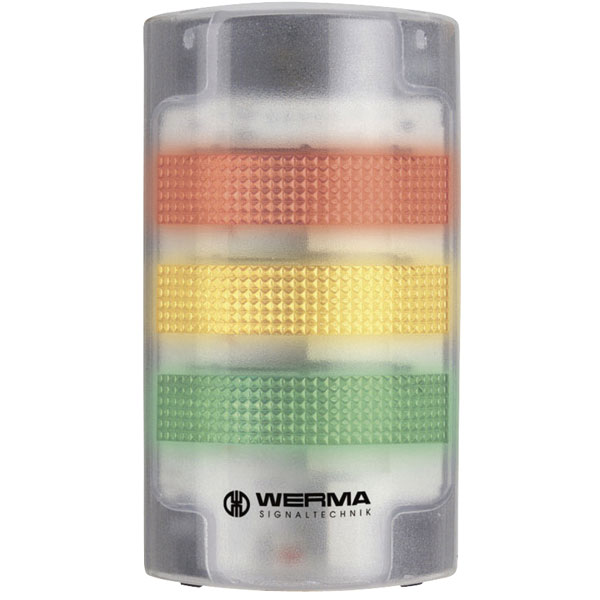

The Werma Signaltechnik 691.100.55 is a FlatSIGN Multitone Base Mount Signal Tower. This FlatSIGN system will provide a beam angle of 160° thanks to its semi-round shape, allowing the illuminated signal to be clearly visible from multiple viewpoints.
This base mount system will integrate smoothly into any environment and is supplied with a clear housing. It is compliant with IP65 protection, making it ideal for use in many areas inside and outside.
- LED signal column in a semi-circular design with a 160 degree beam
- Application-specific permanent or flashing light setting
- Supplied with an input voltage of 24V DC
- Supplied with Clear housing
- Manufacturer's part: Werma Signaltechnik FlatSIGN 691.100.55
| Colour |
Green, red, yellow |
| Type |
Beacon |
| Acoustic service life |
5,000 h minimum |
| Blink frequency |
1hz |
| Cable Entry |
Membrane grommet |
| Cable entry maximum |
d = 13 mm |
| Cable entry minimum |
d = 1 mm |
| Conforms with AS-I |
No |
| Conforms with ATEX-directive |
No |
| Conforms with CCC |
No |
| Conforms with CE |
Yes |
| Conforms with DNV |
No |
| Conforms with FCC |
No |
| Conforms with ISED |
No |
| Conforms with RoHS CN |
No |
| Conforms with RoHS directive |
Yes |
| Conforms with TÜV |
No |
| Conforms with UKCA (Importer) |
Yes |
| Conforms with UL |
ULus |
| Conforms with VdS |
No |
| Connection |
Screw terminals |
| cross-sectional area maximum |
1,50mm² / 16AWG |
| cross-sectional area minimum |
0,50mm² / 20AWG |
| Current |
30mA |
| Dome colour |
Clear |
| EAC certificate available |
No |
| Height |
195 |
| ICAO Certification |
No |
| IP Rating |
IP65 |
| Length |
105 |
| Light colour |
Green; Red; Yellow |
| Light Source |
LED |
| Materials |
PC; PC/ABS |
| Operating Voltage |
24v |
| Operating voltage frequency |
50hz |
| Operating voltage tolerance |
+/- 10% |
| Operating voltage type |
AC/DC |
| Optical signal image |
Blink; Permanent |
| Pollution degree |
3 |
| Product Weight |
230 |
| Protection category |
IP65 |
| Protection Class |
Protection class 2 |
| Rated inrush current |
300ma |
| Rated operational current |
30 |
| Rated operational voltage |
24vdc |
| Service life optical |
50,000 h maximum |
| Supply Voltage |
24V |
| Tension relief |
Present (conforms to VDE) |
| Type of fixing |
Wall mounting |
| UL Type Rating |
Type 5 |
| WEEE |
Yes |
| Weight with packaging |
282 |
| Width |
45 |
| Working temperature maximum |
+50°C |
| Working temperature minimum |
-30°C |
