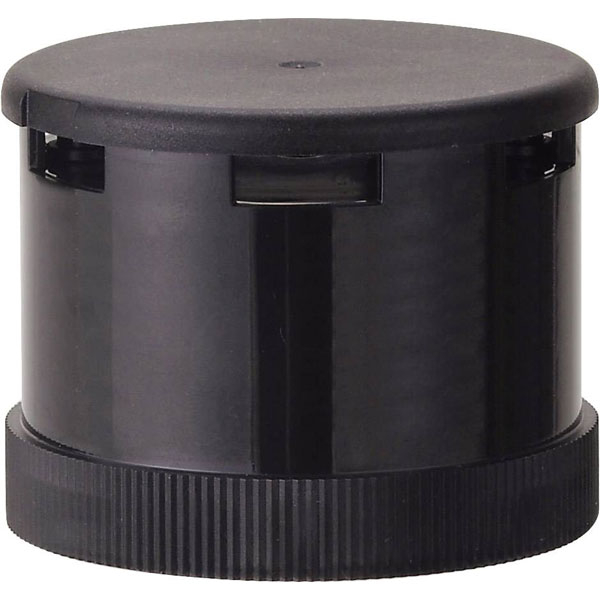

Werma Signaltechnik manufactures the KombiSIGN 71 sounder, part number 645.890.75. This sounder is designed with high-performance attributes for clear and effective auditory signalling. It is typically used in industrial settings for safety and alert purposes.
| Type |
Sounder |
| Acoustic service life |
5,000 h minimum |
| Acoustic signal image |
Multi-tone |
| Case Colour |
Black |
| Conforms with AS-I |
No |
| Conforms with ATEX-directive |
No |
| Conforms with CCC |
No |
| Conforms with CE |
Yes |
| Conforms with CMIM |
No |
| Conforms with DNV |
No |
| Conforms with FCC |
No |
| Conforms with ISED |
No |
| Conforms with RoHS CN |
No |
| Conforms with RoHS directive |
Yes |
| Conforms with TÜV |
No |
| Conforms with UKCA (Importer) |
Yes |
| Conforms with UL |
cULus |
| Conforms with VdS |
No |
| Diameter |
70mm |
| Dimensions |
(Ø x H) 70 mm x 54 mm |
| EAC certificate available |
No |
| Height |
54mm |
| Housing Colour |
Black |
| ICAO Certification |
No |
| IP Rating |
Protection class II (insulated) |
| Materials |
PC |
| Misc Attribute |
KombiSIGN 71 |
| MTTFd-value [years] |
1676 |
| Number of tones |
8 |
| Operating Voltage |
24v |
| Operating voltage frequency |
50hz |
| Operating voltage tolerance |
+/- 10% |
| Operating voltage type |
AC/DC |
| Pollution degree |
3 |
| Product Weight |
74 |
| Protection category |
IP65 |
| Protection Class |
Protection class 2 |
| Rated inrush current |
250ma |
| Rated operational current |
30 |
| Rated operational voltage |
24vdc |
| Signal type |
Multi-tone signal |
| Sound Level |
102dB |
| Supply Voltage |
24V |
| UL Type Rating |
Type 12 |
| Volume (max) at 1m distance |
102,0 dB (A) |
| Volume adjustable |
Switch |
| Volume adjustment range |
92 - 102 dB (A) |
| WEEE |
Yes |
| Weight |
74g |
| Weight with packaging |
93 |
| Working temperature maximum |
+50°C |
| Working temperature minimum |
-20°C |
