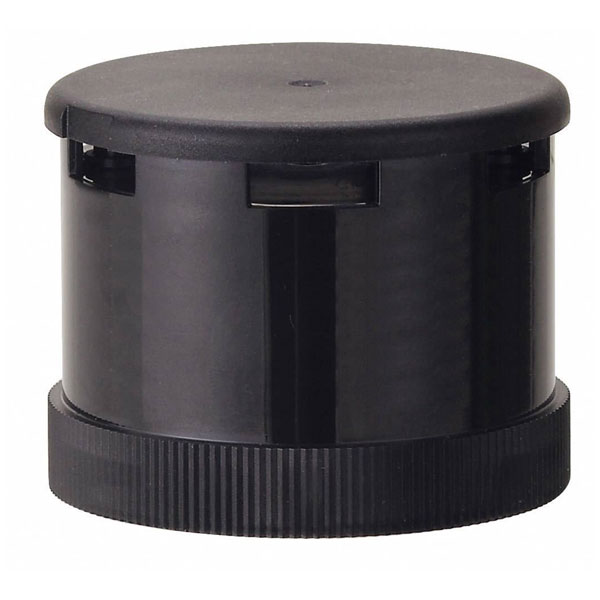

Werma 645.870.75 KombiSIGN 72 Sounder Loud Clear Signal 1pc

The Werma Signaltechnik Sounder 645.870.75 KombiSIGN 72 is a versatile signalling device designed for industrial use. It features a loud sound output suitable for notifying personnel in noisy environments. This device is typically used in factory settings to enhance safety and communication.

Type	Sounder
Acoustic service life	5,000 h minimum
Acoustic signal image	Alternating tone; Continuous tone
Audio frequency	3000
Conforms with AS-I	No
Conforms with ATEX-directive	No
Conforms with CCC	No
Conforms with CE	Yes
Conforms with CMIM	No
Conforms with DNV	No
Conforms with FCC	No
Conforms with ISED	No
Conforms with RoHS CN	No
Conforms with RoHS directive	Yes
Conforms with TÜV	No
Conforms with UKCA (Importer)	Yes
Conforms with UL	cULus
Conforms with VdS	No
Diameter	70mm
Dimensions	(Ø x H) 70 mm x 54 mm
EAC certificate available	No
Height	54mm
Housing Colour	Black
ICAO Certification	No
IP Rating	IP65
Materials	PC
Max. Current Consumption	100mA
Misc Attribute	KombiSIGN 72
MTTFd-value [years]	2677
Number of tones	2 tone
Operating Voltage	24v
Operating voltage frequency	50hz
Operating voltage tolerance	+/- 10%
Operating voltage type	AC/DC
Pollution degree	3
Product Weight	74
Protection category	IP65
Protection Class	Protection class 2
Rated inrush current	100ma
Rated operational current	40
Rated operational voltage	24vdc
Sound Level	105dB
UL Type Rating	Type 12
Volume (max) at 1m distance	105,0 dB (A)
Volume adjustable	Switch
Volume adjustment range	ca. 95 / 105 dB (A)
WEEE	Yes
Weight	80g
Weight with packaging	89
Working temperature maximum	+50°C
Working temperature minimum	-20°C
