Weipu SP2113/S3 SP21 Bullet Connector Socket Built-in 3 Pins UV Resistant

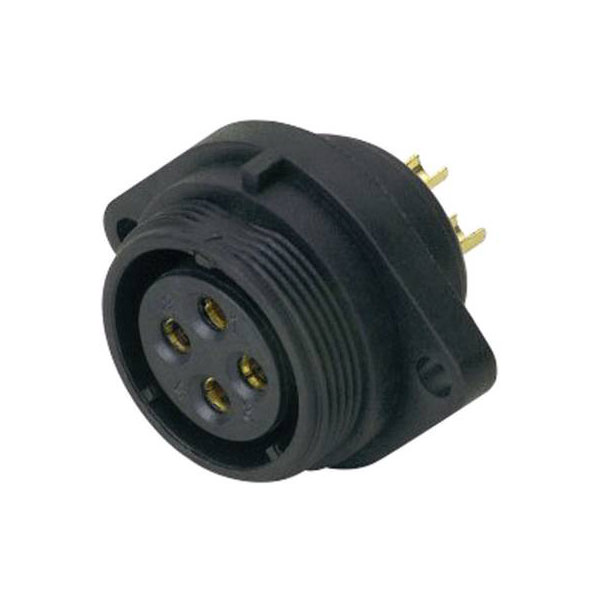

Image Representative of Range

Weipu SP2113/S3 SP21 Bullet Connector Socket Built-in 3 Pins UV Resistant

Weipu
Standard range
Order Code:

13-5364

Brand: Weipu MPN: SP2113 / S 3 EAN-13: 2050001515278
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Weipu SP2113/S 3 bullet connector is a built-in socket designed with a total of three pins, part of the SP21 series of round connectors. Manufactured by Weipu, this connector is robust and ensures secure electrical connections. It is typically used in industrial and outdoor applications where reliability and durability are critical.
Type Bullet connector
AWG 11
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, built-in
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Misc Attribute Weipu Connector
Mounting hole diameter 21mm
Nominal current 10A
Nominal current - rounded value 10A
Nominal voltage 250V
Number of pins 3
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 3
