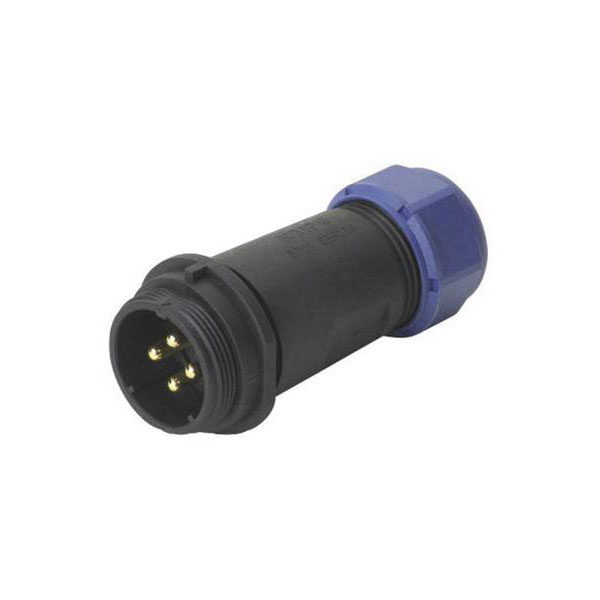

Weipu SP2111P12II SP21 Bullet Connector Plug 12 Pins Waterproof UV Resistant

Image Representative of Range

Weipu SP2111P12II SP21 Bullet Connector Plug 12 Pins Waterproof UV Resistant

Weipu
Standard range
Order Code:

13-5317

Brand: Weipu MPN: SP2111 / P 12 II EAN-13: 2050001514899
Qty Unit Price (Ex VAT)
1+ £5.43
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
51 in stock, despatched in 4 working days

Weipu is the manufacturer of the SP2111 / P 12 II bullet connector. This straight plug features 12 pins and is part of the SP21 series of round connectors. It is typically used in industrial applications for secure and reliable electrical connections.
Type Bullet connector
AWG 18
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 0.758 mm² (max)
IP rating IP68
max. cross section 0.758mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 500V
Number of pins 12
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 12
