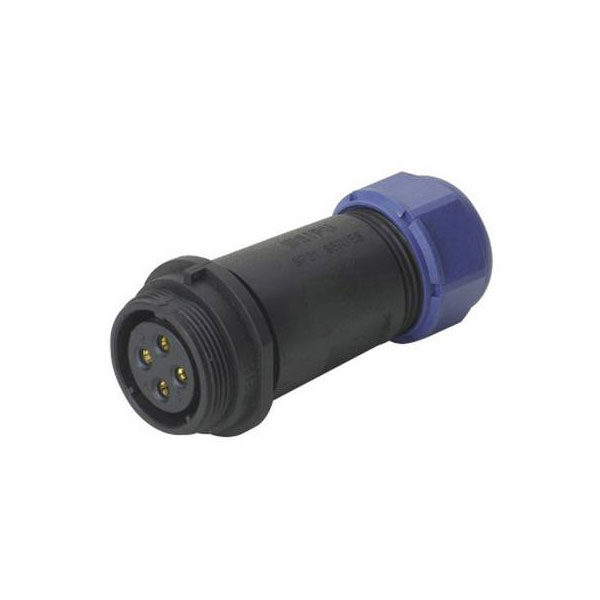

Weipu SP2111/S 7 II SP21 Bullet Connector Socket Straight 7 Pins UV-Resistant

Image Representative of Range

Weipu SP2111/S 7 II SP21 Bullet Connector Socket Straight 7 Pins UV-Resistant

Weipu
Standard range
Order Code:

13-5333

Brand: Weipu MPN: SP2111 / S 7 II EAN-13: 2050001514967
Qty Unit Price (Ex VAT)
1+ £5.41
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
25 in stock, despatched in 4 working days

The Weipu SP2111/S 7 II is a bullet connector socket, featuring a straight design with a total of seven pins, suitable for use in round connectors under the SP21 series. Manufactured by Weipu, it is designed for secure and durable connections in various electrical and industrial applications. This connector is commonly used where reliable and robust connectivity is required, particularly in outdoor or harsh environments.
Type Bullet connector
AWG 14
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 500V
Number of pins 7
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 7
