Weipu SP2111/S 5B II SP21 Socket Straight Bullet Connector Waterproof

Image Representative of Range

Weipu SP2111/S 5B II SP21 Socket Straight Bullet Connector Waterproof

Weipu
Standard range
Order Code:

13-5331

Brand: Weipu MPN: SP2111 / S 5B II EAN-13: 2050001514943
Qty Unit Price (Ex VAT)
1+ £4.74
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
19 in stock, despatched in 4 working days

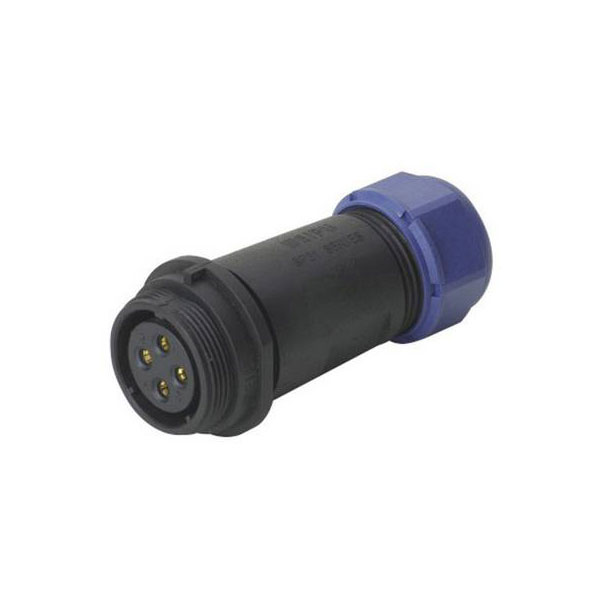

The Weipu SP2111 / S 5B II is a bullet connector socket designed for secure and reliable electrical connections. This straight socket from the SP21 series is suitable for harsh environments, offering robust performance. It is typically used in industrial and outdoor applications, ensuring durability and consistent connectivity.
Type Bullet connector
AWG 18/11
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 200V
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
