Weipu SP2111/P3I SP21 Bullet Connector Plug Straight 3 Pins Waterproof

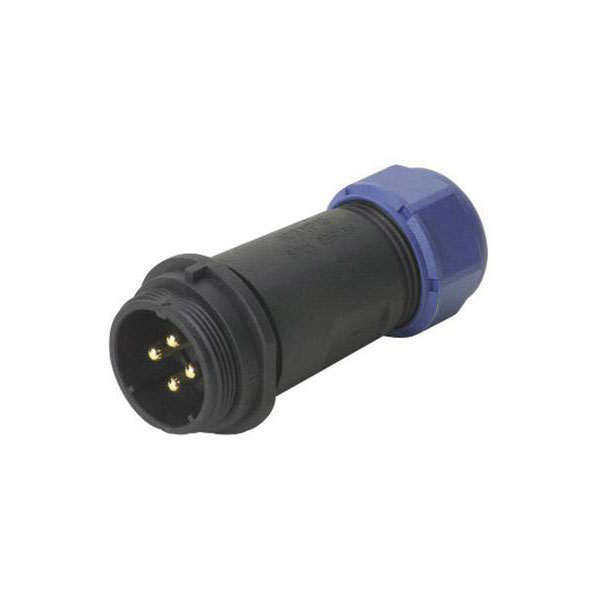

Image Representative of Range

Weipu SP2111/P3I SP21 Bullet Connector Plug Straight 3 Pins Waterproof

Weipu
Standard range
Order Code:

13-5319

Brand: Weipu MPN: SP2111 / P 3 I EAN-13: 2050001514820
Qty Unit Price (Ex VAT)
1+ £4.74
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
69 in stock, despatched in 4 working days

The Weipu SP2111 / P 3 I is a bullet connector plug, straight, with a total of 3 pins, suitable for the SP21 series of round connectors. Manufactured by Weipu, this connector is designed for durability and reliability in electrical connections. It is typically used in outdoor and industrial applications where secure and weather-resistant connections are required.
Type Bullet connector
AWG 11
Cable Ø (max.) 7mm
Cable Ø range 4 - 7 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Misc Attribute Weipu Connector
Nominal current 30A
Nominal current - rounded value 30A
Nominal voltage 500V AC
Number of pins 3
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 3
