Weipu SP2111/P 9 II SP21 Connector 9 Pins Straight Plug UV Resistant

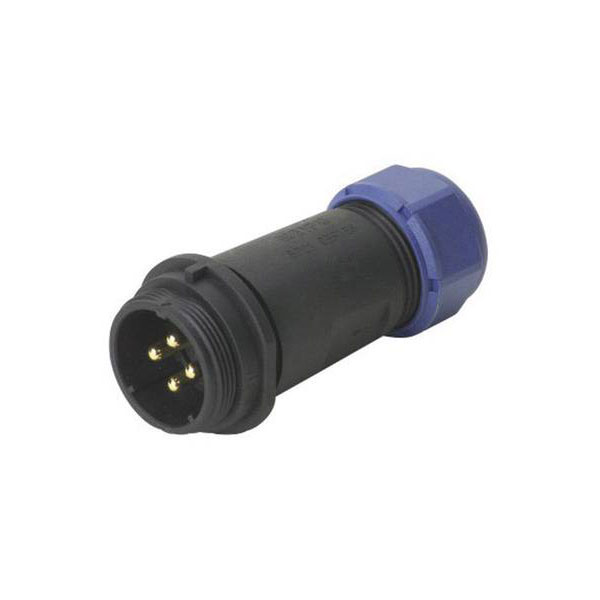

Image Representative of Range

Weipu SP2111/P 9 II SP21 Connector 9 Pins Straight Plug UV Resistant

Weipu
Standard range
Order Code:

13-5325

Brand: Weipu MPN: SP2111 / P 9 II EAN-13: 2050001514882
Qty Unit Price (Ex VAT)
1+ £5.43
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
71 in stock, despatched in 4 working days

The Weipu SP2111 / P 9 II bullet connector is a straight plug with a total of 9 pins, designed as part of the SP21 series of round connectors. Manufactured by Weipu, this connector is robust and suitable for outdoor and industrial applications, providing reliable connections in challenging environments. Commonly used in telecommunications, automation systems, and marine equipment, it ensures secure and waterproof connectivity.
Type Bullet connector
AWG 18
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 0.758 mm² (max)
IP rating IP68
max. cross section 0.758mm²
Max. temperature +125°C
Min. temperature -25°C
Misc Attribute Weipu Connector
Nominal current 5A
Nominal current - rounded value 5A
Nominal voltage 500V AC
Number of pins 9
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 9
