Weipu SP2110P2I SP21 Bullet Connector Plug 2 Pins UV Resistant

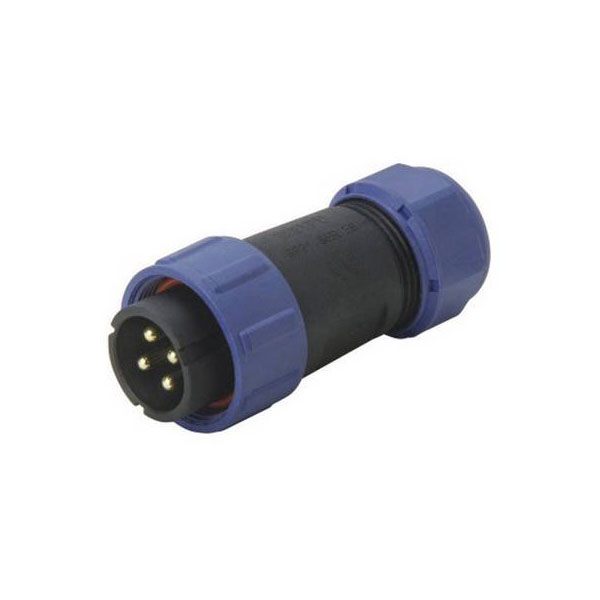

Image Representative of Range

Weipu SP2110P2I SP21 Bullet Connector Plug 2 Pins UV Resistant

Weipu
Standard range
Order Code:

13-5299

Brand: Weipu MPN: SP2110 / P 2 I EAN-13: 2050001514639
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
607 in stock, despatched in 4 working days

The Weipu SP2110 / P 2 I is a straight bullet connector plug with 2 pins, belonging to the SP21 series of round connectors. Manufactured by Weipu, this connector is designed for dependable electrical connections in various industrial and commercial settings. It is typically used for applications requiring robust and secure connectivity in outdoor or harsh environments.
Type Bullet connector
AWG 11
Cable Ø (max.) 7mm
Cable Ø range 4 - 7 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 30A
Nominal current - rounded value 30A
Nominal voltage 600V
Number of pins 2
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 2
