Weipu SP2110/P5BII SP21 Bullet Connector Plug Straight Screw Lock Compact

Image Representative of Range

Weipu SP2110/P5BII SP21 Bullet Connector Plug Straight Screw Lock Compact

Weipu
Standard range
Order Code:

13-5303

Brand: Weipu MPN: SP2110 / P 5B II EAN-13: 2050001514677
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
45 in stock, despatched in 4 working days

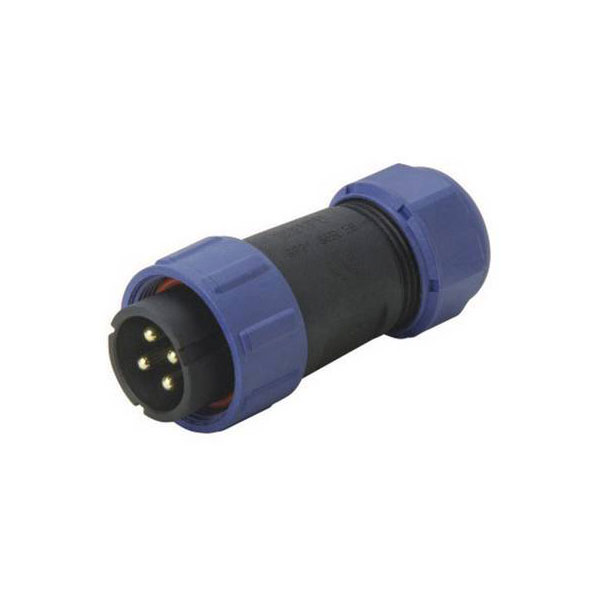

The Weipu SP2110/P 5B II bullet connector plug is a straight, round connector from the SP21 series. It is manufactured by Weipu and is designed for reliable and secure connections in electrical systems. This connector is typically used in industrial and outdoor applications due to its robust construction.
Type Bullet connector
AWG 18/11
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 30A
Nominal current - rounded value 30A
Nominal voltage 600V
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
