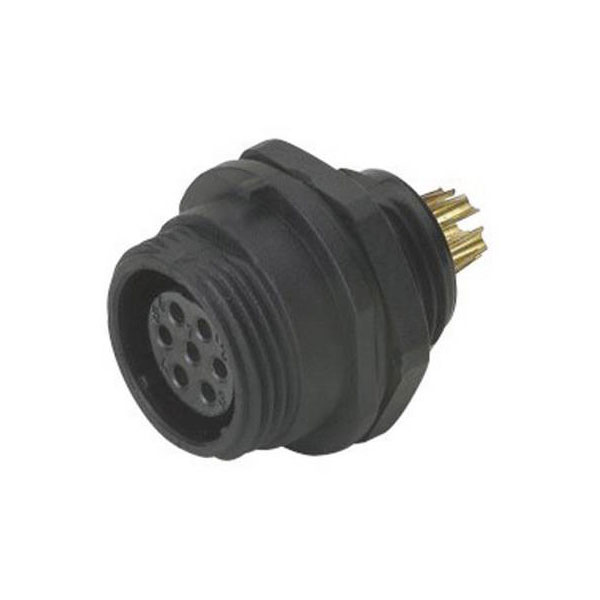

Weipu SP1312 S 5 SP13 Bullet Connector Socket 5 Pins UV-resistant IP67

The Weipu SP1312/S 5 is a built-in bullet socket connector designed with five pins, part of the SP13 series. It offers reliable connections in various industrial applications, thanks to its robust design. Manufactured by Weipu, this connector is ideal for use in demanding environments that require durable and secure connectivity solutions.

Type	Socket, built-in
Number of Contacts	5
Connector Size	20 mm dia
Gender	Socket
Case Material	PPS
Colour	Black
Connection	Soldering
Connection Angle	180°
Contact Material	Gold plated
Cross-section range	0.758 mm² (max)
Current Rating	30A
IP Rating	IP68
max. cross section	0.758mm²
Mounting Hole Diameter	13mm
Nominal Voltage	230V
Series	SP13
Termination	Screw-type locking
Wire Gauge (AWG)	18
