Weipu SP1312/P6 SP13 Bullet Connector Plug 6-Pin Screw Lock UV-Resistant

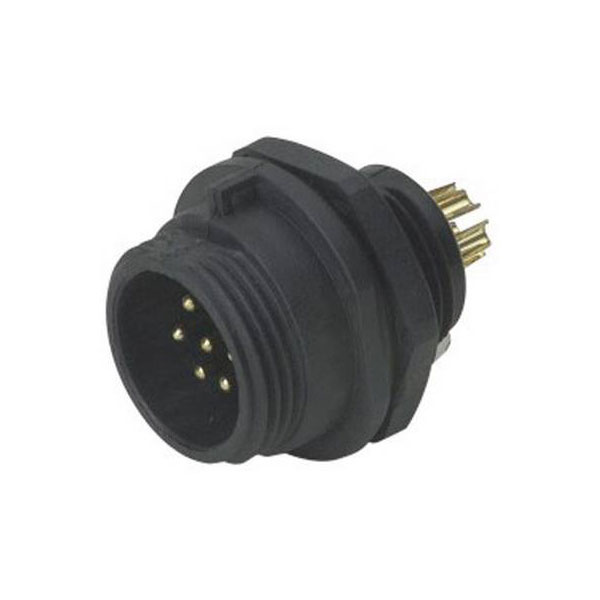

Image Representative of Range

Weipu SP1312/P6 SP13 Bullet Connector Plug 6-Pin Screw Lock UV-Resistant

Weipu
Standard range
Order Code:

13-5287

Brand: Weipu MPN: SP1312 / P 6 EAN-13: 2050001514509
Qty Unit Price (Ex VAT)
1+ £3.27
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
64 in stock, despatched in 4 working days

The Weipu SP1312 / P 6 bullet connector is a plug designed for mounting with a total of 6 pins, part of the SP13 series of round connectors. Manufactured by Weipu, this connector is commonly used for secure and reliable electrical connections in industrial and outdoor applications. Its robust design ensures durability and resistance to environmental factors.
Type Bullet connector
AWG 18
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, mount
Contact material Gold plated
Cross-section range 0.758 mm² (max)
Factory colour Black
IP rating IP68
max. cross section 0.758mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Mounting hole diameter 13mm
Nominal current 5A
Nominal current - rounded value 5A
Nominal voltage 600V
Number of pins 6
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 6
