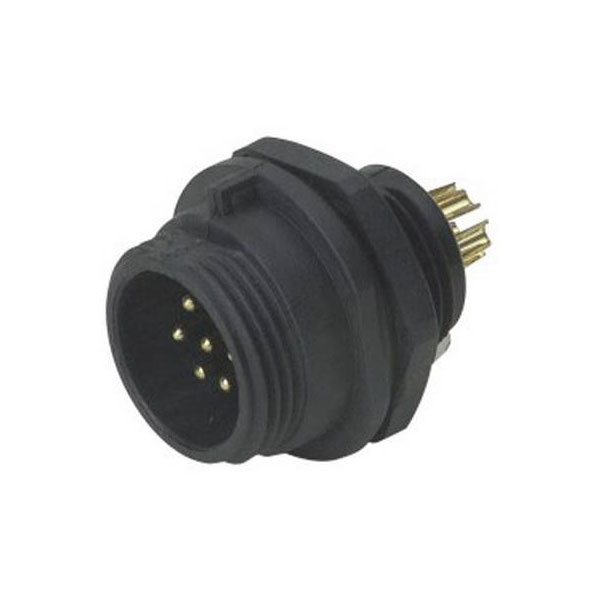

Weipu SP1312/P5 SP13 Bullet Connector Plug 5 Pins Secure Sealed UV Resistant

The Weipu SP1312 / P 5 bullet connector is a robust plug with five pins, designed for secure and reliable connections in various electronic applications. As part of the SP13 series, it is suitable for use in industrial and outdoor environments, offering durability and water resistance. This connector is ideal for equipment requiring a dependable and safe electrical connection.

Type	Plug, mount
Number of Contacts	5
Connector Size	20 mm dia
Gender	Plug
Case Material	PPS
Colour	Black
Connection	Soldering
Connection Angle	180°
Contact Material	Gold plated
Cross-section range	0.758 mm² (max)
Current Rating	5A
IP Rating	IP68
max. cross section	0.758mm²
Maximum Temperature	+125°C
Min. temperature	-55°C
Mounting Hole Diameter	13mm
Nominal Voltage	600V
Number of pins	5
Series	SP13
Termination	Screw-type locking
Wire Gauge (AWG)	18
