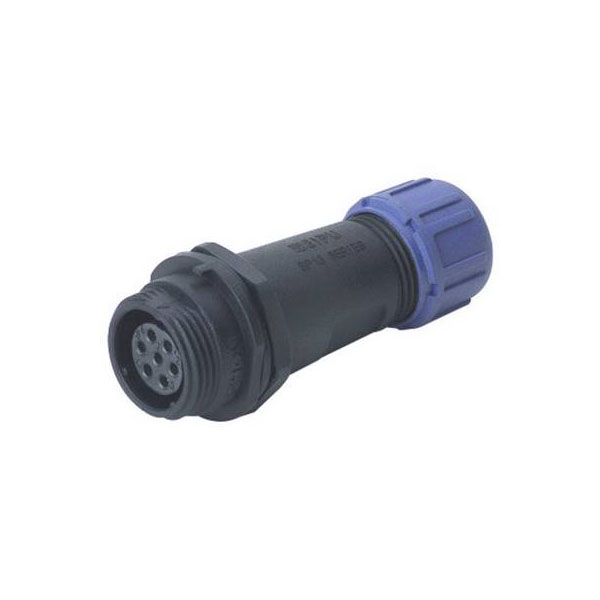

Weipu SP1311S4I SP13 Bullet Connector Socket Straight 4 Pins UV Resistant

Image Representative of Range

Weipu SP1311S4I SP13 Bullet Connector Socket Straight 4 Pins UV Resistant

Weipu
Standard range
Order Code:

13-5277

Brand: Weipu MPN: SP1311 / S 4 I EAN-13: 2050001514400
Qty Unit Price (Ex VAT)
2+ £3.18
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
38 in stock, despatched in 4 working days

Manufactured by Weipu, the SP1311/S 4 I bullet connector is a straight socket featuring four pins, belonging to the SP13 series of round connectors. Known for its reliable connection, it is commonly used in various industrial and outdoor electrical applications. This connector ensures secure and durable connections in harsh environments.
Type Bullet connector
AWG 18
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 250V AC
Number of pins 4
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 4
